Ultrasound of Chest in ICU

Posted by Dr KAMAL DEEP on March 31, 2017

Indications for Chest ultrasound include:

1.To differentiate white out of pleural effusion from consolidation

2. Bedside detection of anomalies to avoid transporting critically Ill patient and faster ,dynamic picture

3.Guidance for diagnostic and therapeutic thoracentesis.

 A 3.5 to 5.0 MHz transducer.

Cardiac transducers are particularly effective allowing scanning between rib interspaces.

Typical Position in Critically Ill patient:- Supine with the ipsilateral arm held across the chest towards the opposite side.

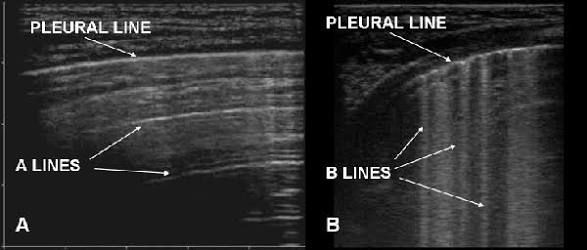

Method :-The transducer is oriented to scan between the ribs. The A lines and B lines are shown below:-

A lines:- A lines are horizontal lines that are brightly echogenic and located between the rib shadows when the probe is positioned longitudinally

B lines:- Pleural ultrasound image depicting B lines (“comet tail artifact”), which are seen in acute pulmonary edema and acute respiratory distress syndrome. The presence of B lines would provide an alternate explanation for increased density seen on the chest radiograph, other than pleural fluid.

Lung sliding — The sonographic effect of lung sliding (also known as lung gliding or the lung sliding sign) is created by movement of the lung relative to the chest wall during respiration . The sonographic appearance is that of a thin, bright line moving horizontally along the pleural line with a wave-like pattern located above (towards the chest wall) and a granular pattern below. Lung sliding is an indirect sign indicating adherence of the visceral pleura to the parietal pleura. When air separates the two pleural layers as in a pneumothorax, the movement disappears.

In addition the Blue Protocol can be downloaded from this link which can be summarized as below:-

  • Predominant A lines + lung sliding = Asthma/COPD
  • Multiple predominant B lines anteriorly with lung sliding = Pulmonary Edema
  • Normal anterior profile + DVT= PE
  • Anterior absent lung sliding + A lines + lung point = Pneumothorax (PTX)
  • Anterior alveolar consolidations, anterior diffuse B lines with abolished lung sliding, anterior asymmetric interstitial patterns, posterior consolidations or effusions with out anterior diffuse B lines = Pneumonia
  • A lines:
    • Appear as horizontal lines
    • Indicate dry interlobular septa.
    • Predominance of A lines has 90% sensitivity, 67% specificity for pulmonary artery wedge pressure <= 13mm Hg
    • A line predominance suggests that intravenous fluids may be safely given without concern for pulmonary edema
  • B lines (“comets”):
    • White lines from the pleura to the bottom of the screen

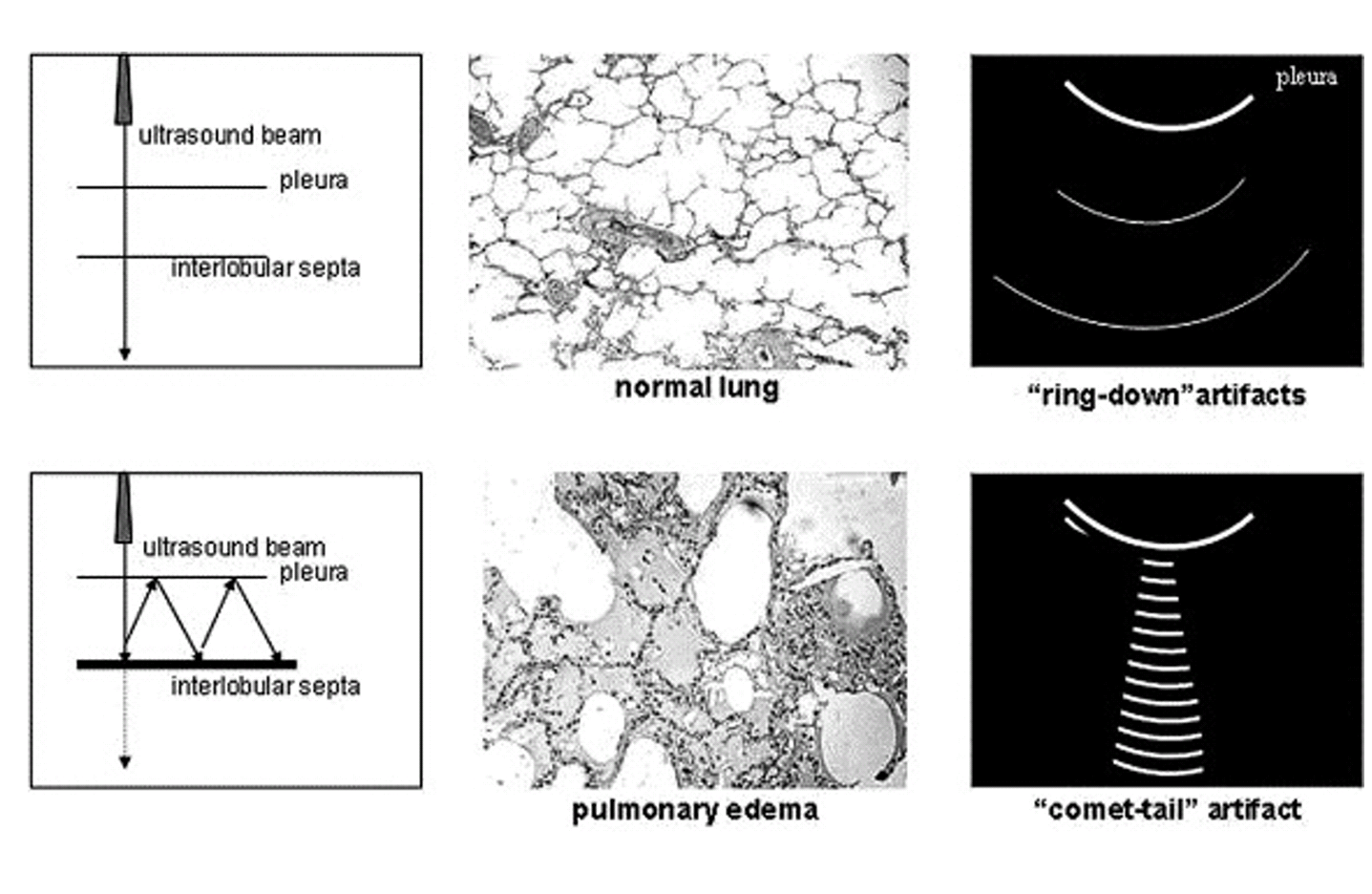

    • Highly sensitive for pulmonary edema, but can be present at low wedge pressuresThe  hypothesized  physical  and  anatomic  basis  of  echocardiographic  lung  comet  tails.  Reflections  of  the  ultrasound  beam  between  thickened  interlobular  septa  and  the  pleura  generate  a  resonance  signal  over  a  prolonged time.  The  increased  return  over  time  is  interpreted  by  the  ultrasound  machine  as  a  hyperechoic  structure  originating deeper  in  the  tissue  and  is  displayed  as  a  comet-tail  on  the  ultrasound  screen.  (Illustrations  and  images  from  Jambrik et  al.  Usefulness  of  ultrasound  lung  comets  as  a  nonradiologic  sign  of  extravascular  lung  water.

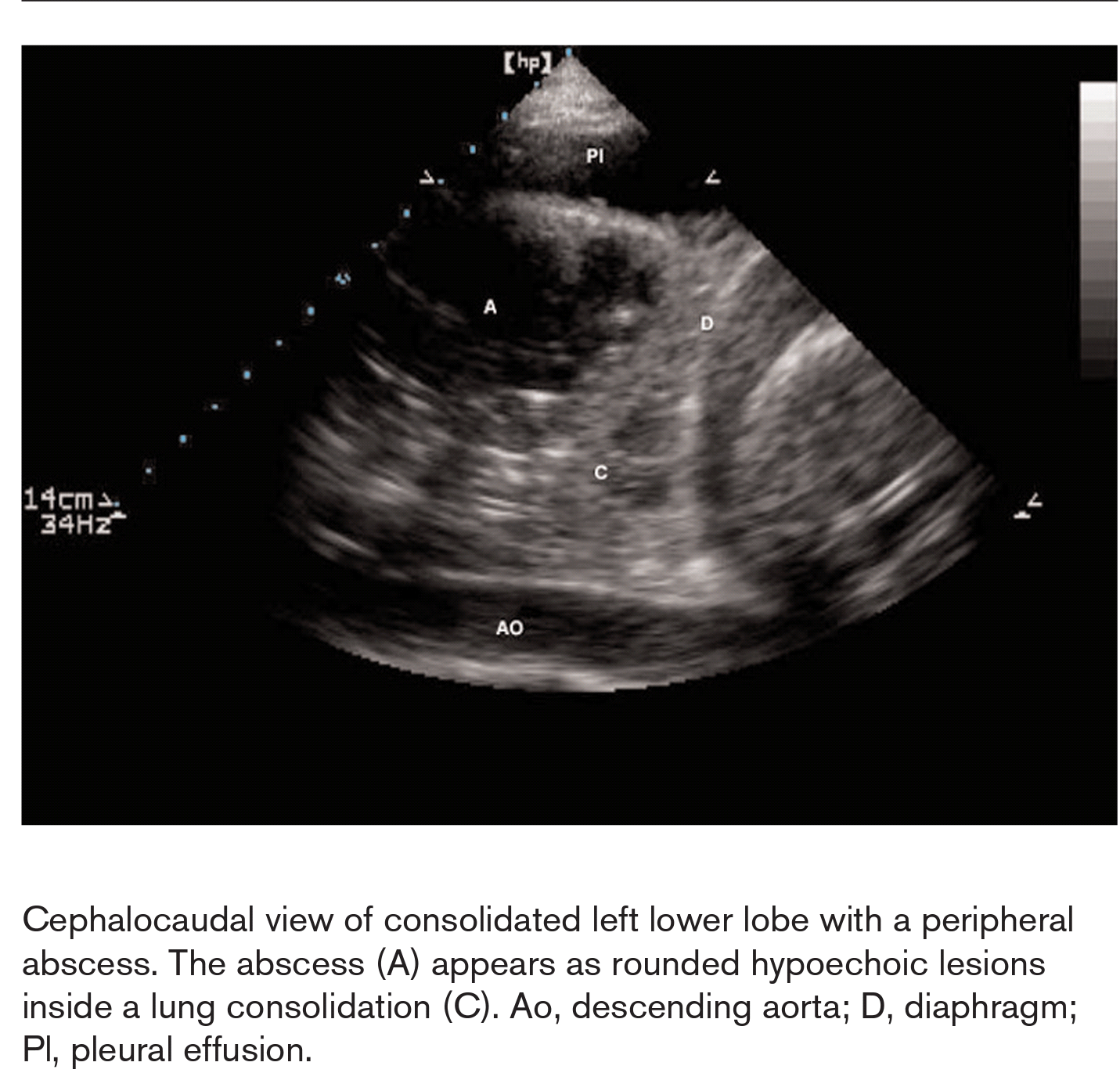

    • Lung Abscess

 This video shows a small pleural effusion and adjacent alveolar consolidation of the lung. With each inspiration, aerated lung is interposed into the imaging window with loss of visualization of the underlying structures. This is termed the curtain sign. The 3.5 MHz transducer is in longitudinal orientation and placed perpendicular to the chest wall to scan through the 8th intercostal space in the left mid-axillary line.
