Anatomy Notes Vol.2

Posted by Dr KAMAL DEEP on December 19, 2010

1.  Nerves of Upper Limbs



2. Musculocutaneous Nerve Supplies Lateral Side of Forearm Also.

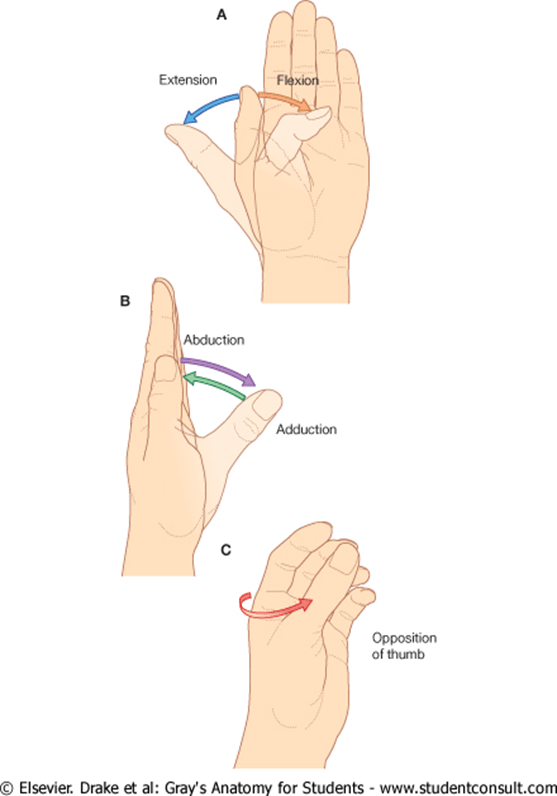

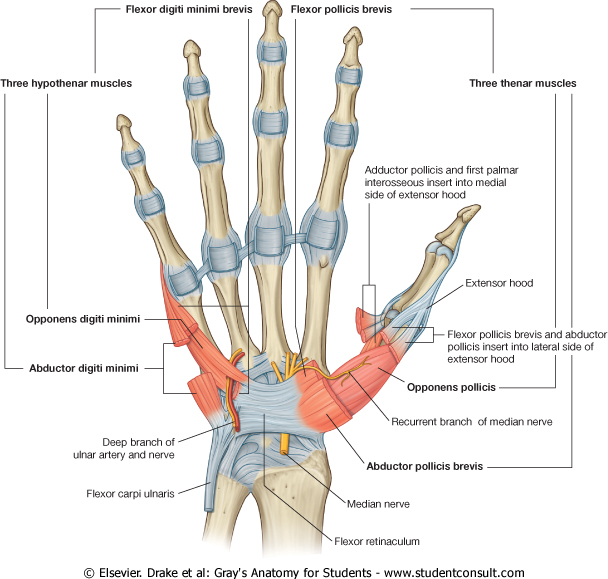

Important See the Diagram:- All muscles of thumb are supplied (pollicis) are supplied by Median Nerve except which causes adduction(Ulnar Nerve)..Obviously Ulnar nerve is a medial nerve it supplies the Adductor Pollicis as adduction is towards medial.

Q:-Median nerve supplies all muscles of the thumb except :
(A)Abductor-pollicis-brevis
(B)Flexor-pollicis brevis
(C)Opponens pollicis
(D)Adductor pollicis…….ans

Median nerve injury at “wrist”, is commonly tested by :-
(A)
Contraction of abductor pollicis brevis…….ans
(B)Contraction of flexor pollicis brevis
(C)Loss of sensation on palm
(D)Loss of sensation on ring finger

The median nerve is vulnerable to division from lacerations at the wrist. Division leads to paralysis of the lumbricals to the index and middle fingers and the thenar muscles (apart from adductor pollicis), as well as loss of sensation to the thumb, index, middle and radial half of the ring fingers. The radial half of the hand becomes flattened as a result of wasting of the thenar muscles and the adducted posture of the thumb.

Pen Test :- Detects the median Nerve injury.It tests the integrity of abductor pollicis brevis



First and Second Lumbricals are Also supplied by Median Nerve

Rest all intrinsic muscles including all interossie are supplied by ULNAR NERVE.

Flexor Pollicis Brevis Superficial head supplied by Median Nerve while deep head by Ulnar Nerve.

Flexor Pollicis “Longus” supplied by Median Nerve.


Radial Nerve supplies all the extensors and also the ABDUCTOR POLLICIS “LONGUS.”

Pollicis “Longus” muscles are supplied by respective chief muscles of forearm like abductor pollicis longus by radial nerve and flexor pollicis longus by median nerve.

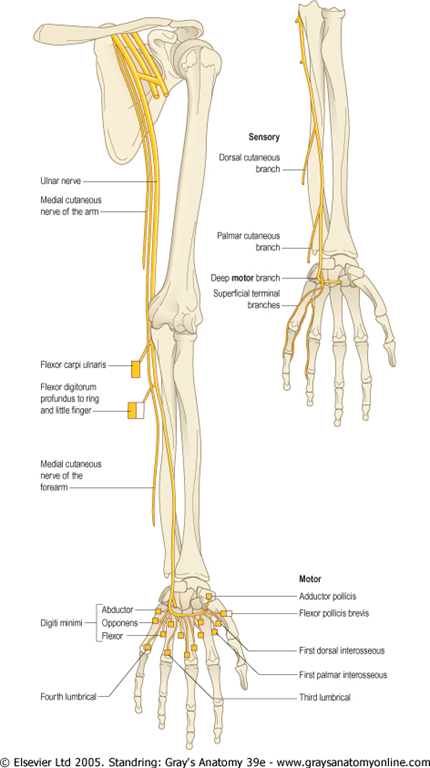

ULNAR NERVE (Musician nerve)IS CHIEF MUSCLE OF HAND.

RADIAL NERVE IS CHIEF MUSCLE OF BACK OF FOREARM

MEDIAN NERVE (Laborers nerve)IS CHIEF MUSCLE OF FRONT OF FOREARM.

3. Ring Finger tip supplied by Median nerve and Ulnar Nerve

4.Dorsum of middle finger is supplied by radial nerve and ulnar nerve and median nerve.

5.Deltoid Muscle Origin is Just outer to the Insertion of Trapezius muscle:-

Origin of Deltoid:-Inferior edge of the crest of the spine of the scapula, lateral margin of the acromion, anterior border of lateral one-third of clavicle

Insertion of Trapezius:-Superior edge of the crest of the spine of the scapula, acromion, posterior border of lateral one-third of clavicle

Function of Deltoid:-Major abductor of arm (abducts arm beyond initial 15° done by supraspinatus); clavicular fibers (Anterior Fibers) assist in flexing the arm; posterior fibers assist in extending the arm.

All of the following features can be observed after the injury to axillary nerve, except:
A.Loss of rounded contour of shoulder
B.Loss of sensation along lateral side of upper arm
C.Loss of overhead abduction
D.Atrophy of deltoid muscle

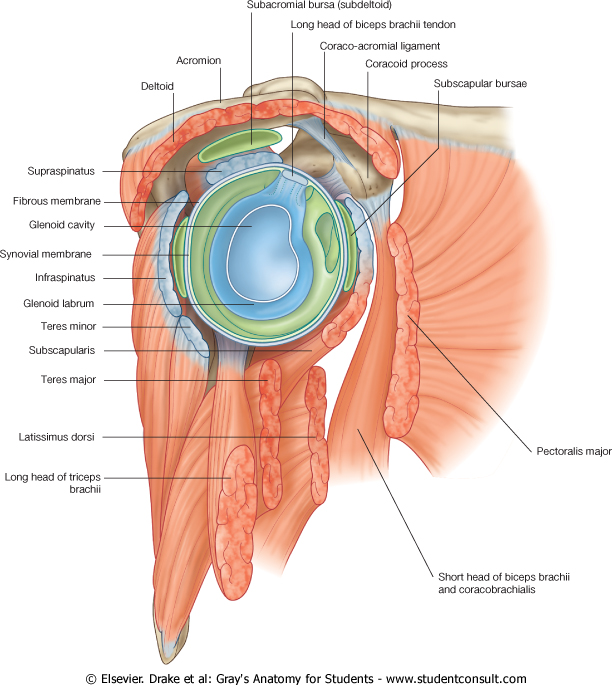

6. Sub acromial bursa:-

All of the following structures may be compressed during flexion and abduction of shoulder joint except :
(A)Suprascapular nerve
(B)Long head of biceps tendon
(C)Supraspinatus tendon
(D)Subacromial-bursa

clip_image002

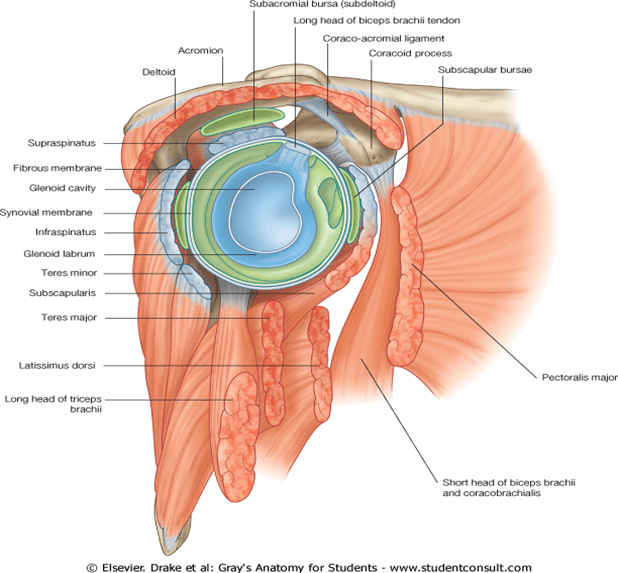

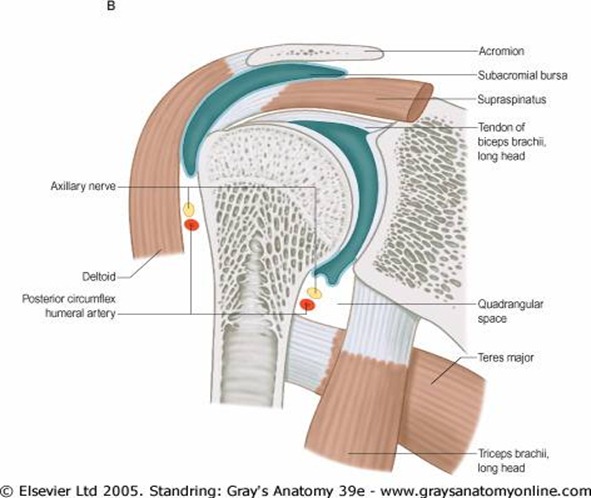

Coronal section through the left shoulder joint

Rotator cuff impingement syndrome

The Subacromial space is defined by the humeral head inferiorly, and the anterior edge and inferior surface of the anterior third of the acromion, coracoacromial ligament and acromioclavicular joint superiorly. It is occupied by the supraspinatus tendon, subacromial bursa, tendon of the long head of biceps brachii, and the capsule of the shoulder joint. Rotator cuff impingement syndrome is a painful disorder caused by severe or chronic impingement of the rotator cuff tendons under the coracoacromial arch (Michiner et al 2003). The cuff normally impinges against the coracoacromial arch when the humerus is abducted, flexed and internally rotated. This is known as the impingement position. The supraspinatus tendon is anatomically affected most by the impingement, which interestingly also coincides with an area of reduced vascularity in this tendon. Severe impingement can be caused by osteoarthritic thickening of the coracoacromial arch; inflammation of the cuff from disorders such as rheumatoid arthritis; and prolonged overuse in the impingement position, e.g. in cleaning windows, which, when associated with a tendinopathy from age-related degenerative changes within the tendon, can lead to subsequent partial or complete tears of the cuff. Clinically, this condition causes tenderness over the anterior portion of the acromion, and pain which typically occurs on abducting the shoulder between 60° and 120° (the painful arc).

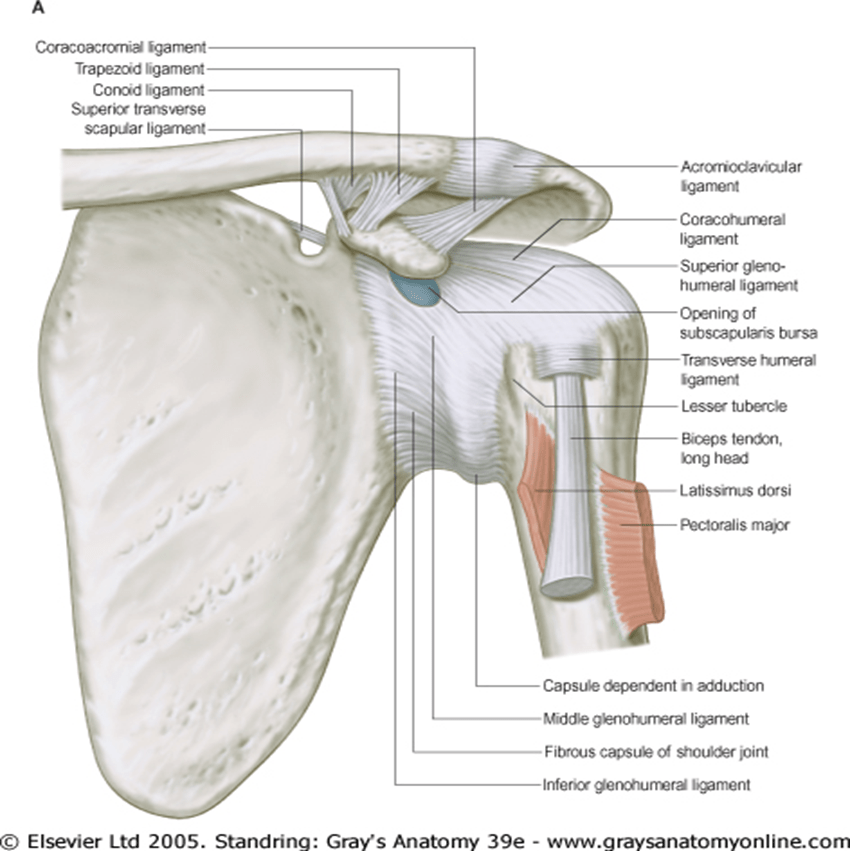

image_thumb8

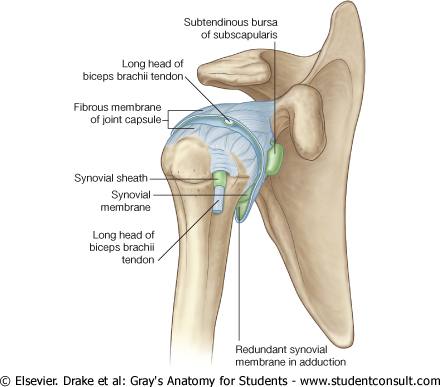

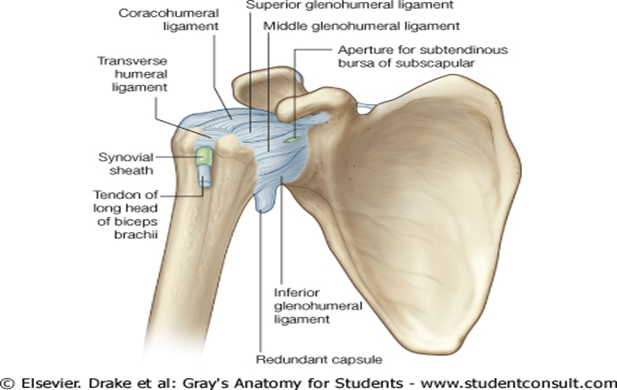

The fibrous membrane of the joint capsule is thickened:

  • anterosuperiorly in three locations to form superior, middle, and inferior glenohumeral ligaments, which pass between the superomedial margin of the glenoid cavity to the lesser tubercle and inferiorly related anatomical neck of the humerus
  • superiorly between the base of the coracoid process and the greater tubercle of the humerus (the coracohumeral ligament);
  • between the greater and lesser tubercles of the humerus (transverse humeral ligament)-this holds the tendon of the long head of the biceps brachii muscle in the intertubercular sulcus

Rotator Interval (In Detail)

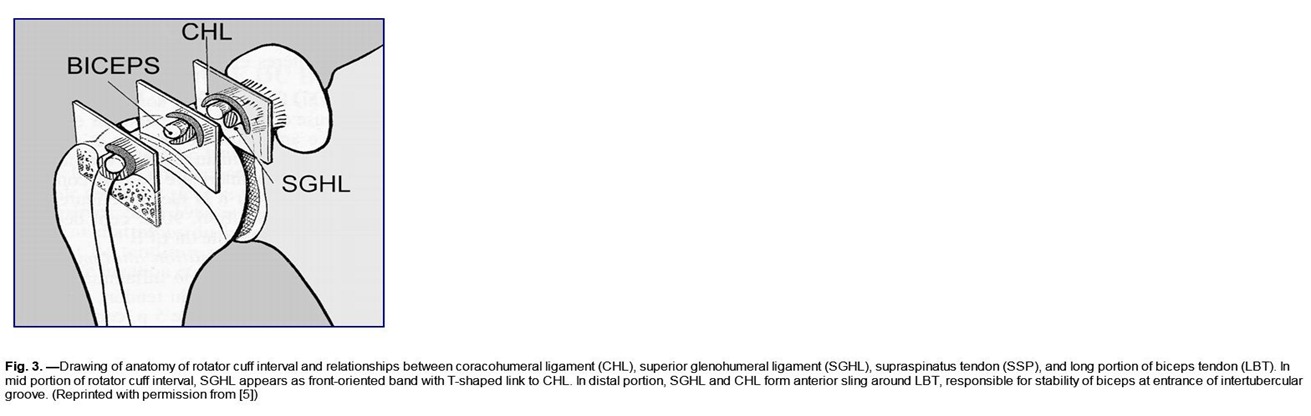

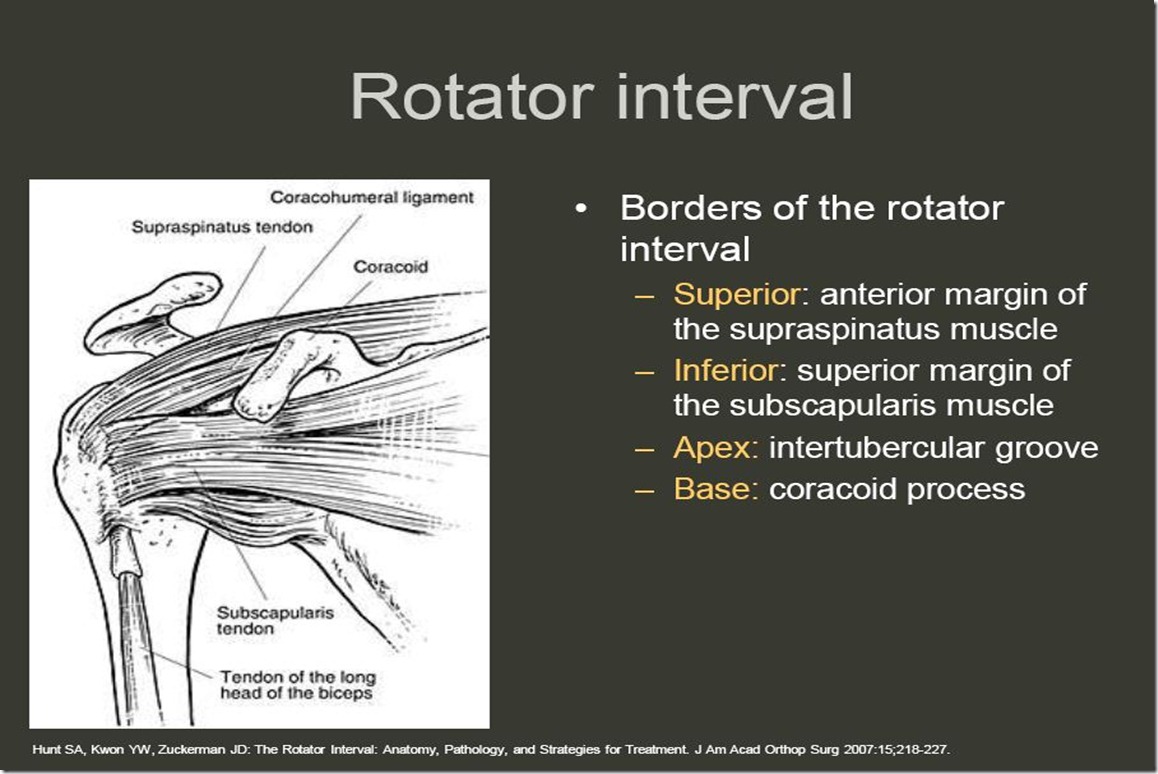

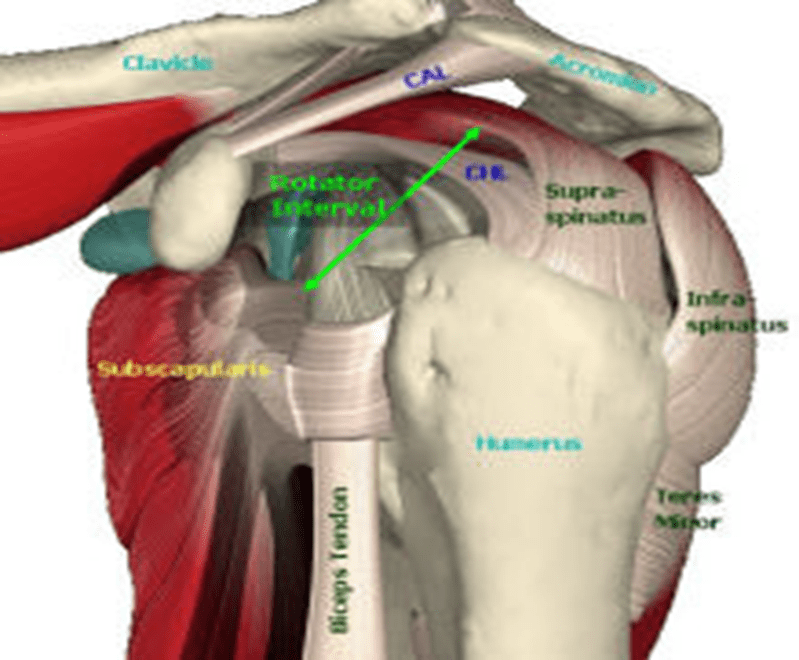

7. Rotator Interval  in detail :-The rotator cuff interval is a triangular space between the subscapularis and supraspinatus tendons and the base of the coracoid process, covered by the rotator interval capsule, whose main component is the coracohumeral ligament (CHL). The rotator cuff interval is a triangular space created by the intervention of the coracoid process between the subscapularis and supraspinatus muscles and tendons. The floor of the rotator cuff interval is the cartilage of the humeral head, and the roof of the rotator cuff interval is the rotator interval capsule, which links the subscapularis and supraspinatus tendons and is composed of two layers: the CHL on the bursal side and the fasciculus obliquus on the articular side.The rotator interval is an anatomic region in the anterosuperior aspect of the glenohumeral joint that represents a complex interaction of the fibers of the coracohumeral ligament, the superior glenohumeral ligament, the glenohumeral joint capsule, and the supraspinatus and subscapularis tendons. As basic science and clinical studies continue to elucidate the precise role of the rotator interval, understanding of and therapeutic interventions for rotator interval pathology also continue to evolve. Lesions of the rotator interval may result in glenohumeral joint contractures, shoulder instability, or in lesions to the long head of the biceps tendon. Long-term clinical trials may clarify the results of current surgical interventions and further enhance understanding of the rotator interval.

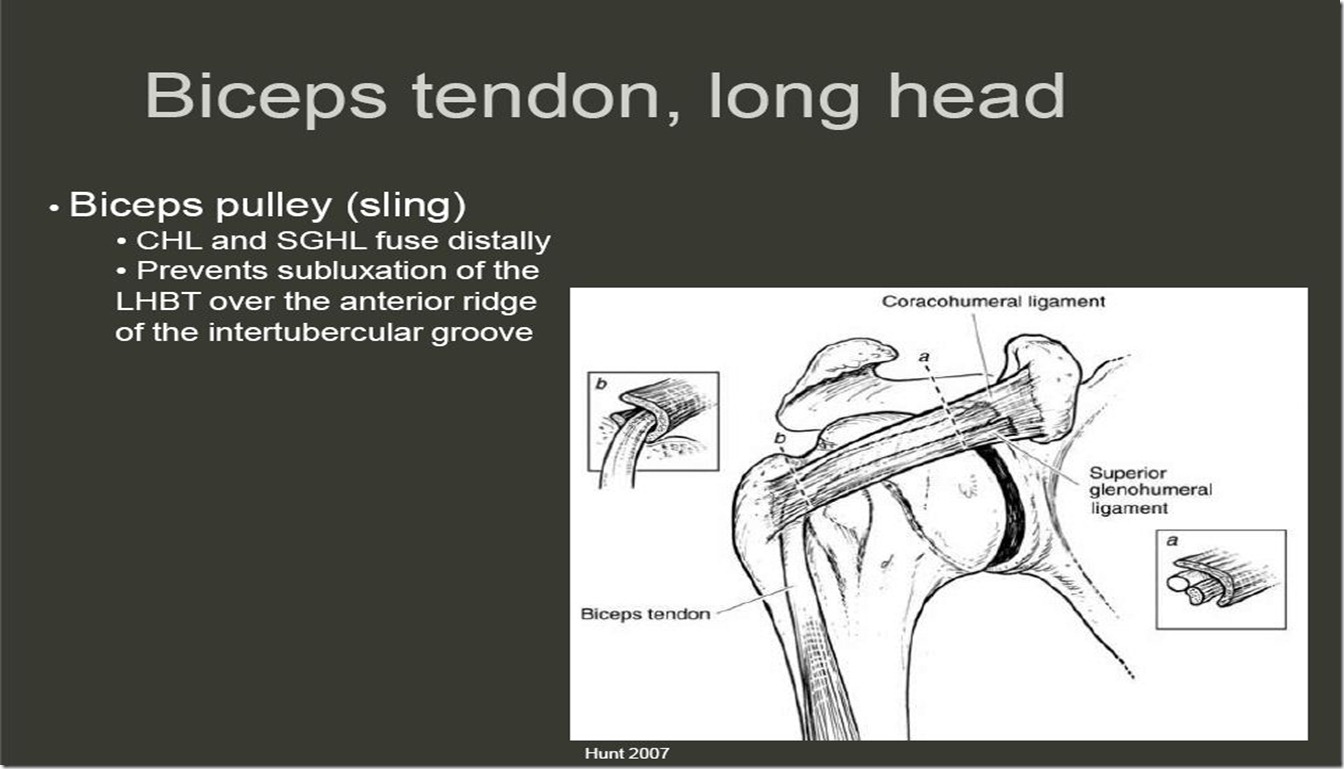

Rotator interval contents

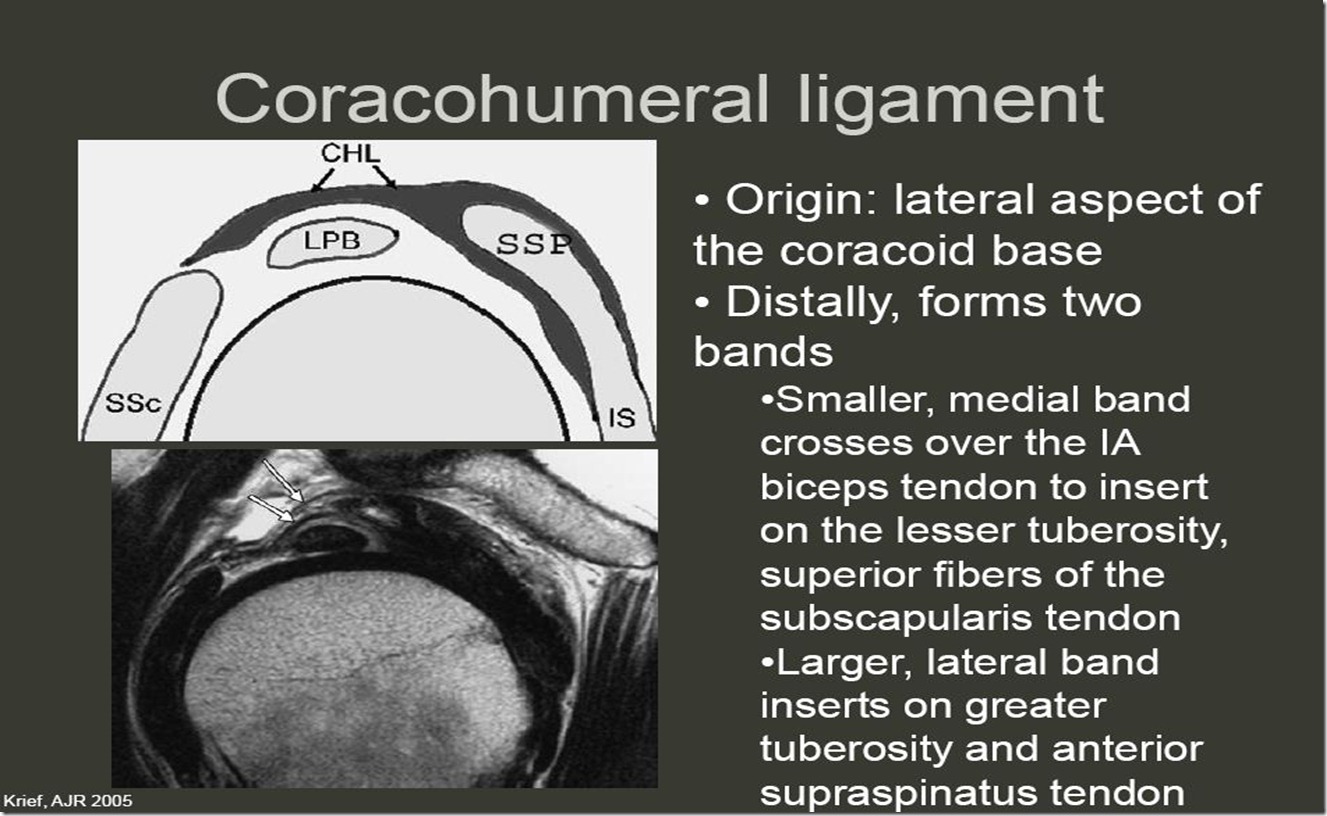

• Coracohumeral ligament
• Superior glenohumeral ligament
• Long head biceps tendon


rt

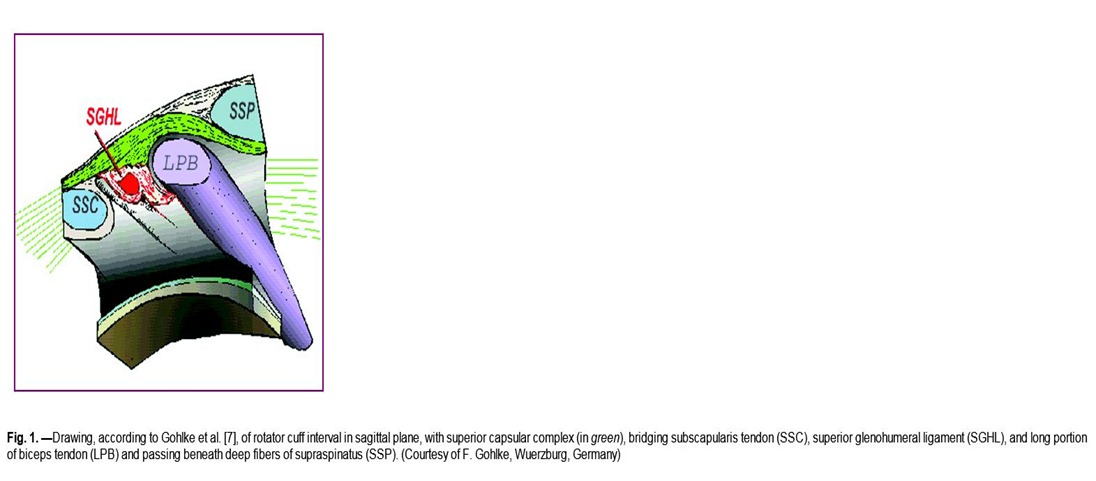

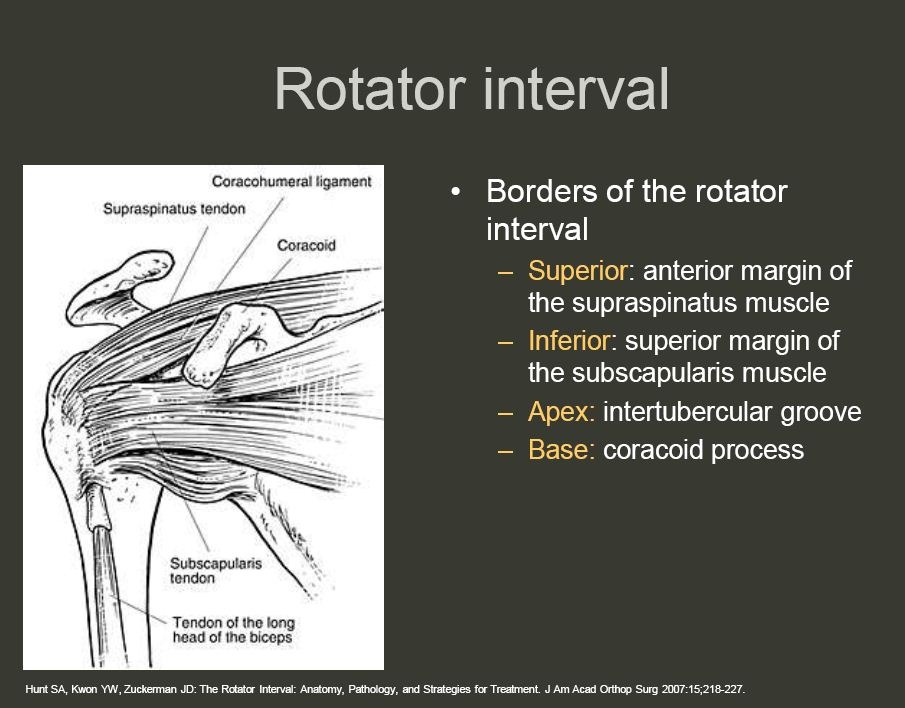

The rotator cuff interval is a triangular space between the subscapularis and supraspinatus tendons and the base of the coracoid process, covered by the rotator interval capsule, whose main component is the coracohumeral ligament (CHL). The rotator cuff interval contains the long head of the biceps tendon (LBT) and the superior glenohumeral ligament (SGHL) [16]. The relationships between the CHL, the SGHL, and the LBT are complex and may be difficult to analyze on MRI because of the variable appearance of the CHL.

rt2

rl3

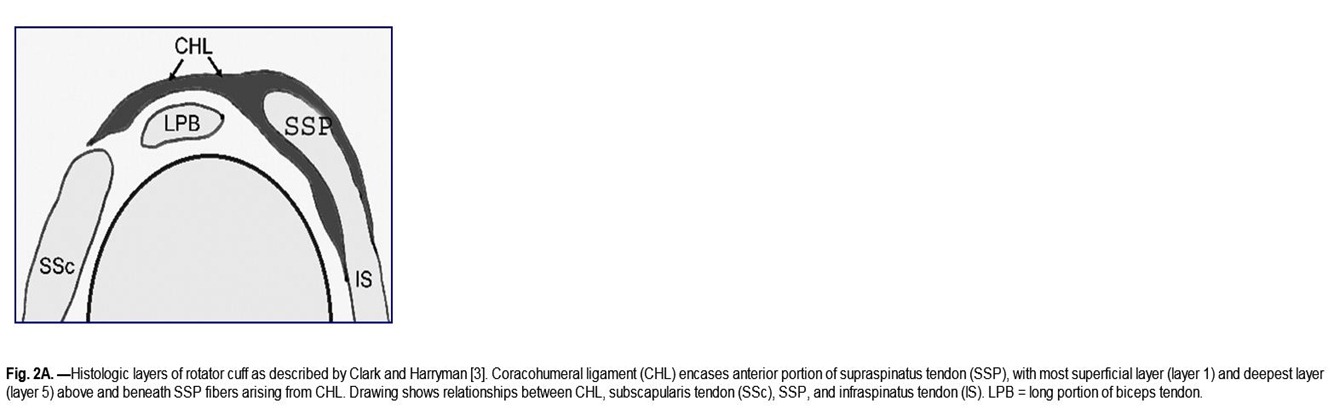

rl4

r5

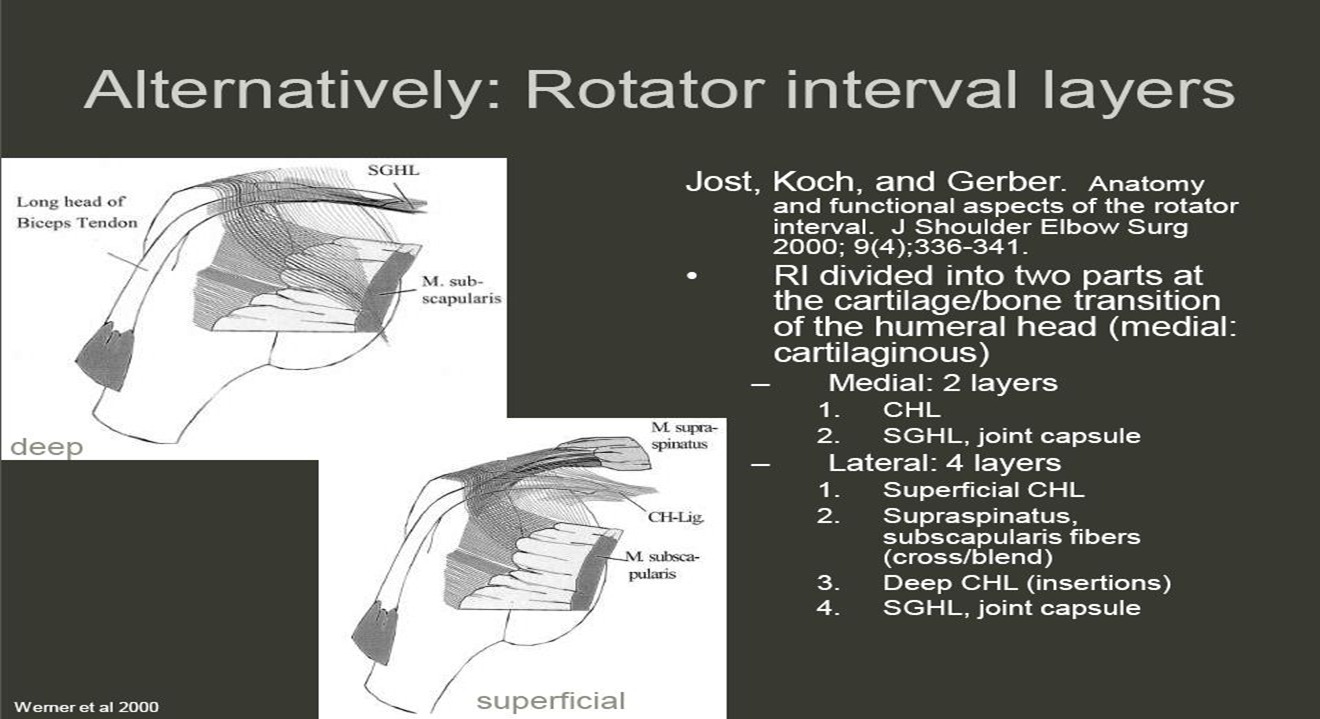

r7

r8

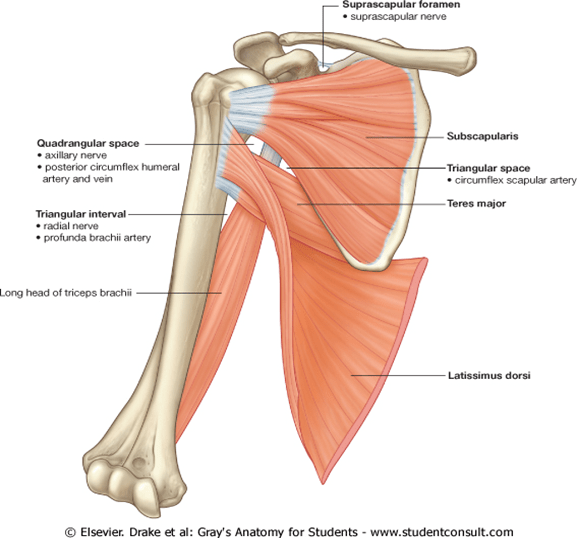

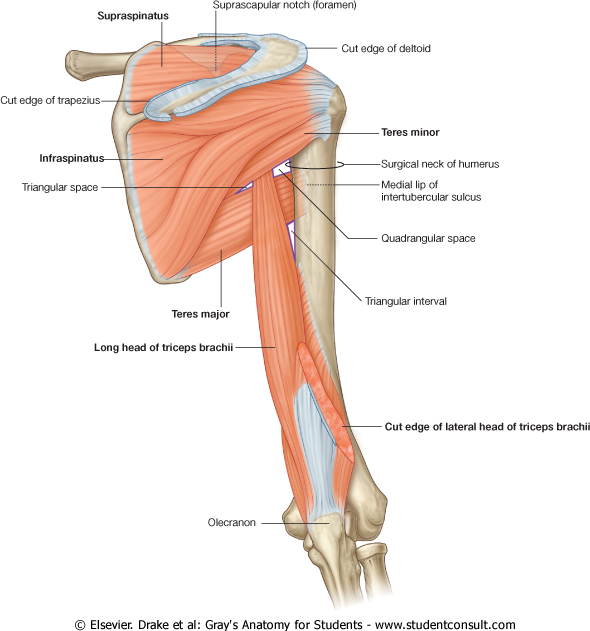

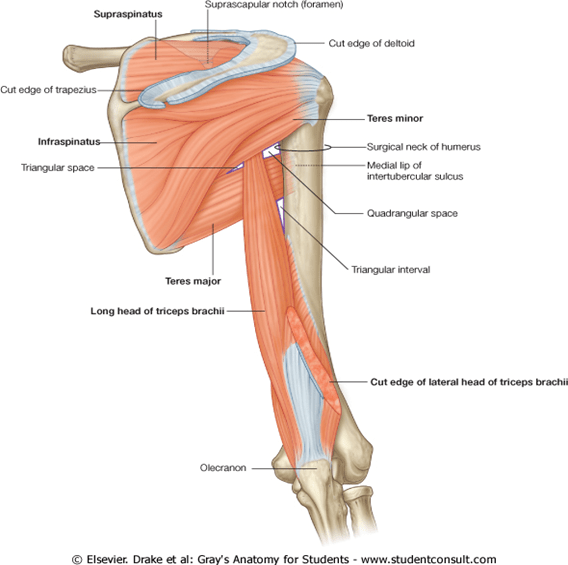

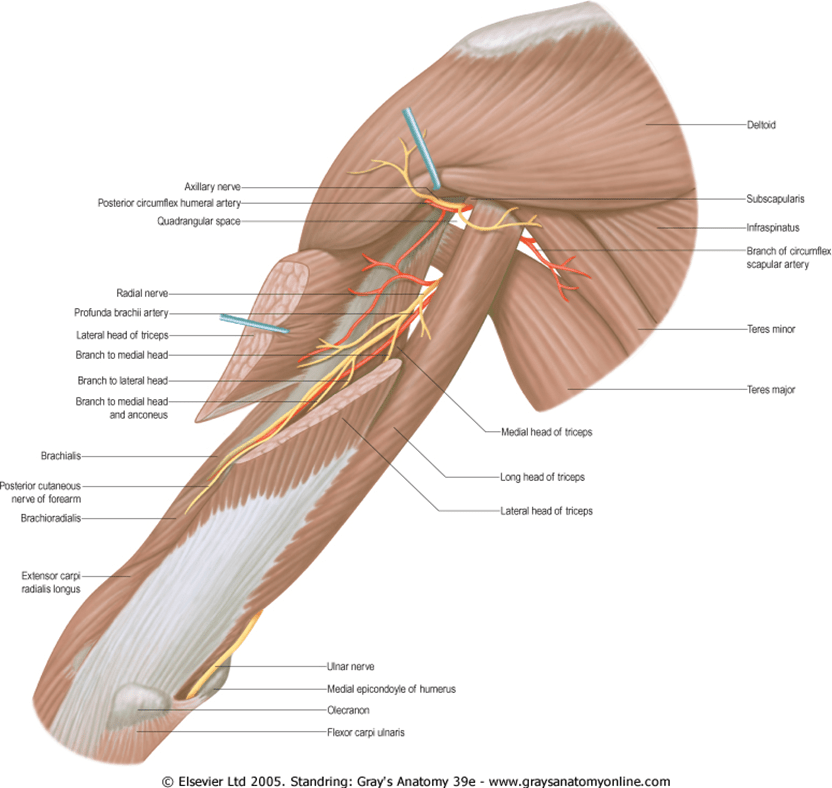

8. Intermuscular Spaces:- Quadrangular space (from posterior) :-





Quadrangular space (from anterior):-


When viewed from anteriorly, its boundaries are formed by:

  • the inferior margin of the subscapularis muscle;
  • the surgical neck of the humerus;
  • the superior margin of the teres major muscle;
  • the lateral margin of the long head of the triceps brachii muscle

In the posterior scapular region, its boundaries are formed by:

  • the inferior margin of teres minor;
  • the surgical neck of the humerus;
  • the superior margin of teres major;
  • the lateral margin of the long head of triceps brachii.

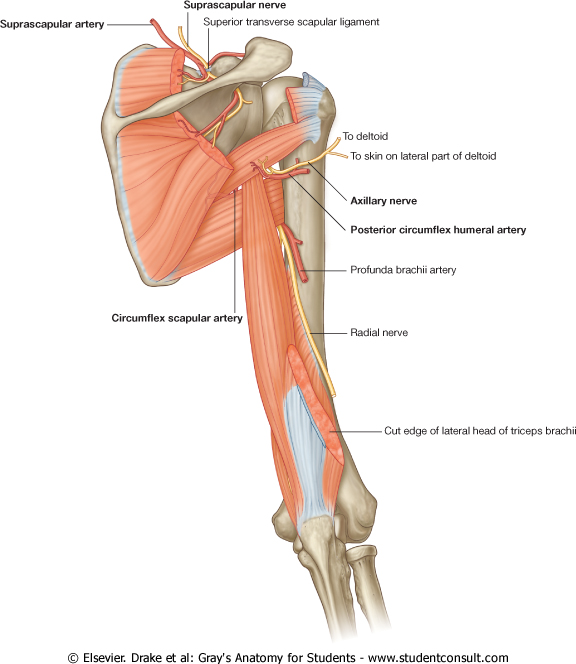

9. Axillary nerve may be damaged by dislocation of shoulder or by the fracture neck of the humerus.Deltoid is paralyzed with loss of abduction at the shoulder.The rounded contour is lost leading to FLAT SHOULDER.There is sensory loss over lower half of the deltoid.

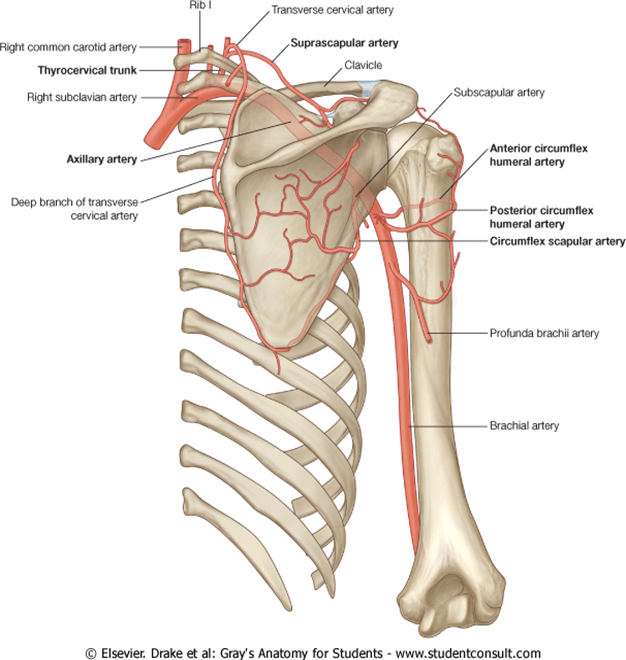

10.Anastomosis around the scapula:-






Deep branch of Transverse cervical artery makes anastomosis with suprascapular artery and circumflex scapular artery.This is an anastomosis between first part of subclavian artery and third part of axillary artery.

Q:- Subscapular artery is a branch of third part of axillary artery not sublclavian artery.Important Point

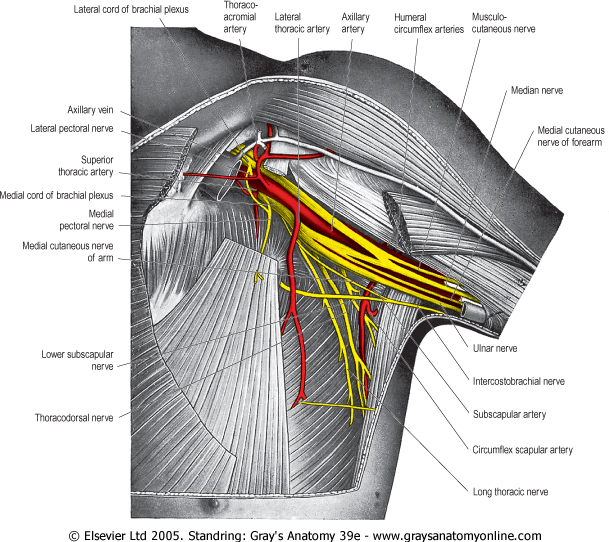

The thoraco-acromial artery is a short branch which arises from the second part of the axillary artery.

The suprascapular artery usually arises from the thyrocervical trunk of the subclavian artery, although it may arise from the third part of the subclavian artery

The lateral thoracic artery arises from the second part of the axillary artery

The superior thoracic artery is a small vessel which arises from the first part of the axillary artery near the lower border of subclavius.




The subscapular artery is the largest branch of the axillary artery. It usually arises from the third part of the axillary artery at the distal (inferior) border of subscapularis, which it follows to the inferior scapular angle, where it anastomoses with the lateral thoracic and intercostal arteries and the deep branch of the transverse cervical artery.

The other terminal branch of the subscapular artery, the thoracodorsal artery(DNB2010), follows the lateral margin of the scapula, posterior to the lateral thoracic artery, between latissimus dorsi and serratus anterior. Before entering the deep surface of latissimus dorsi, it supplies teres major and the intercostals and sends one or two branches to serratus anterior. It enters latissimus dorsi muscle with the thoracodorsal nerve: this constitutes the principle neurovascular pedicle to the muscle. It provides numerous musculocutaneous perforators which supply the skin over the superior part of latissimus dorsi. The intramuscular portion of the artery anastomoses with intercostal arteries and lumbar perforating arteries.

11. All the following are true about musculocutaneous nerve injury at shoulder except:  IMPORTANT Q
A.Loss of flexion at shoulder………ANS
B.Loss of flexion of forearm
C.Loss of supination of forearm
D.Loss of sensation on radial side of forearm

The main muscles producing flexion at shoulder are :- Pectoralis major clavicular head and Clavicular or anterior fibers of deltoid….IMP…Accesory muscle producing flexion at shoulder is Coracobrachialis supplied by Musculocutaneous nerve.

Flexion at forearm is lost as it supplies brachialis as well as Biceps brachii.

Supination is lost as Biceps brachii main action is supination when the forearm is flexed.(Supination is brought about by supinator and biceps brachii.Slow supination with elbow extended is done by supinator while rapid supination is done by biceps when arm is flexed against resistance.

Musculocutaneous nerve is injured at the lateral cord of brachial plexus, positive clinical findings would be
(A)Loss of flexion at shoulder
(B)Sensory loss on the radial side of the forearm….ANS
(C)Loss of extension of forearm
(D)Loss of extension of the wrist

The nerve involved in anterior dislocation of the shoulder is
A.Radial nerve
B.Axillary nerve
C.Ulnar nerve
D.Musculocutaneous nerve………ANS

Following anterior dislocation of the shoulder,a pt develops weakness of flexion at elbow and lack of sensation over the lateral aspect forearm; nerve injured is:
A.Radial nerve
B.Musculocutaneous nerve….ANS
C.Axillary nerve
D.Ulnar nerve

Interscalene approach to brachial plexus block does not provide optimal surgical anaesthesia in the area of distribution of which of the following nerve
A.Musculocutaneous
B.Ulnar……..ans
C.Radial
D.Median

Injury to radial nerve in lower part of spiral groove:
A.Spares nerve supply to extensor carpi radialis longus
B.Results in paralysis of anconeus muscle
C.Leaves extensions at elbow joint intact
D.Weakens pronation movement

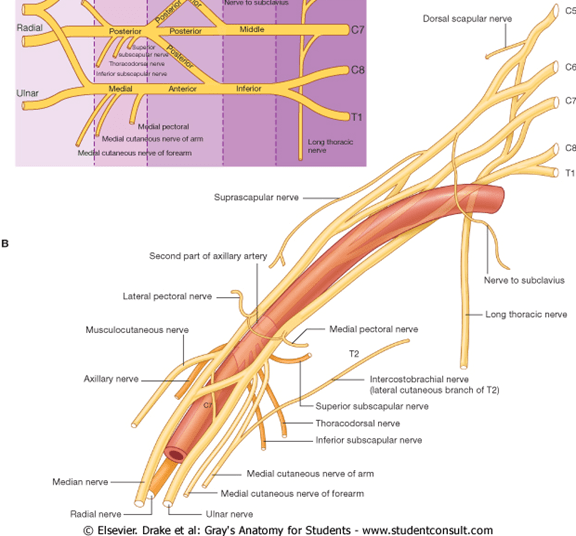

An interscalene brachial plexus block relies on dispersion of the larger volume of local anesthetic within the interscalene groove to accomplish blockade of the brachial plexus.Each trunk divides onto an anterior and a posterior division behind the clavicle, at the apex of the axilla. Within the axilla, the divisions combine to produce the three cords, which are named lateral, medial, and posterior, according to their relationships to the axillary artery. From there on, individual nerves are formed as these neuronal elements descend distally.The interscalene approach to brachial plexus blockade results in consistent anesthesia of the shoulder, arm, and elbow. The interscalene block is not recommended for hand surgery; more distal approaches to the brachial plexus should be used instead (e.g., infraclavicular, axillary). T2 area is not anesthetized.(intercostobrachial nerve area is proper answer.In the above choices Ulnar nerve is the closest to the root values.


Miller says “Although this approach can be used for forearm and hand surgery, blockade of the inferior trunk (C8 through T1) is often incomplete and requires supplementation at the ulnar nerve for adequate surgical anesthesia in that distribution.”

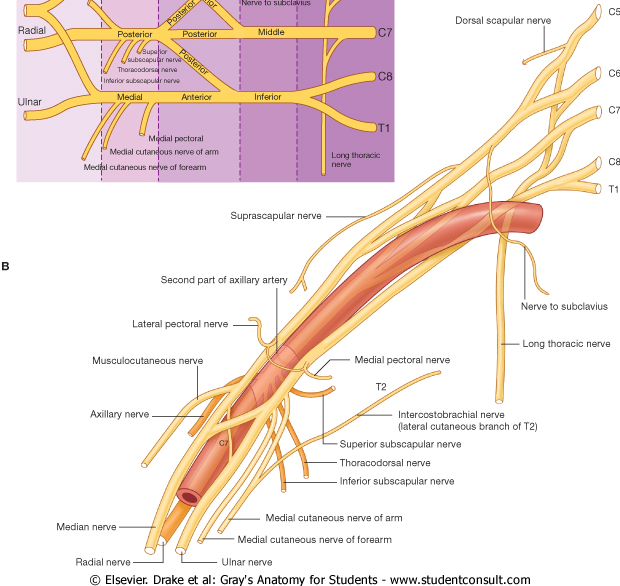

Anatomy:-Between the scalene muscles, these nerve roots unite to form three trunks, which emerge from the interscalene space to lie cephaloposterior to the subclavian artery as it courses along the upper surface of the first rib. Therefore, the “superior” (C5 and C6), “middle” (C7), and “inferior” (C8 and T1) trunks are arranged accordingly and are not in a strict horizontal formation, as often depicted. At the lateral edge of the first rib, each trunk forms anterior and posterior divisions that pass posterior to the midportion of the clavicle to enter the axilla. Within the axilla, these divisions form the lateral, posterior, and medial cords, named for their relationship with the second part of the axillary artery.

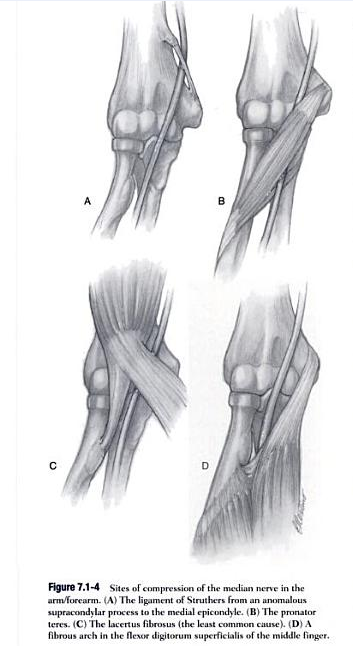

12. Ligament of Struther`s:-Struther, ligament of: fibrous band (occasionally ossified) running between medial epicondyle and shaft of the humerus.

Struthers’ ligament is a ligament that extends between the shaft of the humerus and the medial epicondyle of the humerus.It is not a constant ligament and can be acquired or congenital. Its clinical significance arises form the fact that the median nerve, passes in the space between the ligament and the humerus, and in this space the nerve may be compressed leading to supracondylar process syndrome.The ligament is usually ignored and not mentioned due to the fact that its not always found.

Coracobrachialis is more important morphologically than functionally.It represent the medial compartment of the arm.In some animals the muscle is tricipital.In man the upper two heads have fused,but the musculocutaneous nerve passes between the remnants of these two heads.The third head (and the lowest) head of the muscle has  disappeared in man.Occasional persistence of the lower head is associated with the presence of the so called “ligament of struthers” which is a fibrous band extending from the suprocondylar process to the medial epicondyle of the humerus.Supracondylar process seen in 1%.The third head of the coracobrachialis is inserted into this ligament.The lower part of the pronator teres muscle takes origin from the same ligament.The median nerve,or the brachial artery,or both pass subjacent to the ligament.The ligament of struther is in fact a part of the tendon of the dorso-epitrochlearis which is related to the latissimus dorsi

struther

13.Musculocutaneous Nerve lies laterally to the Axillary Artery….IMPORTANT POINT.



14.

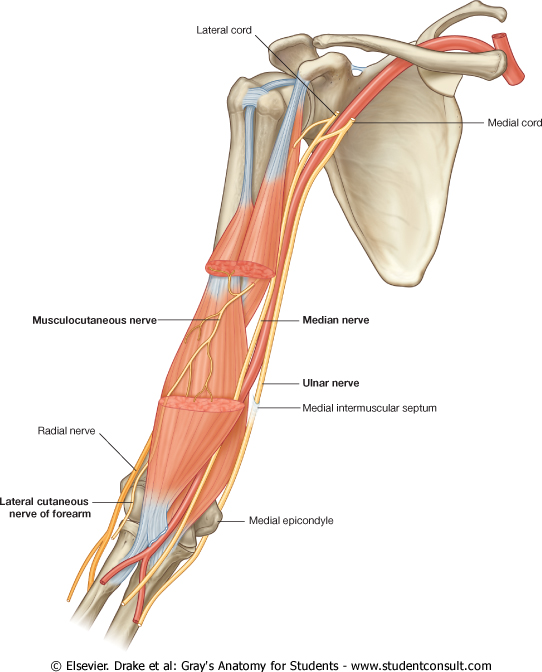

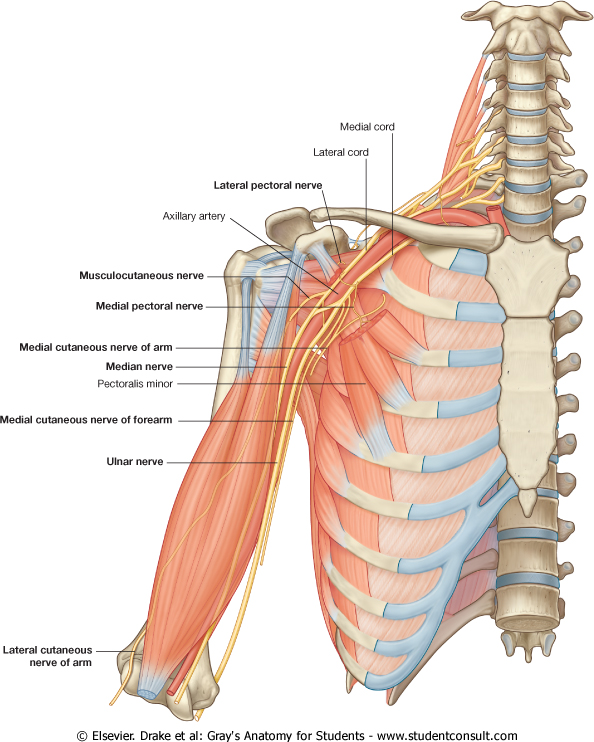

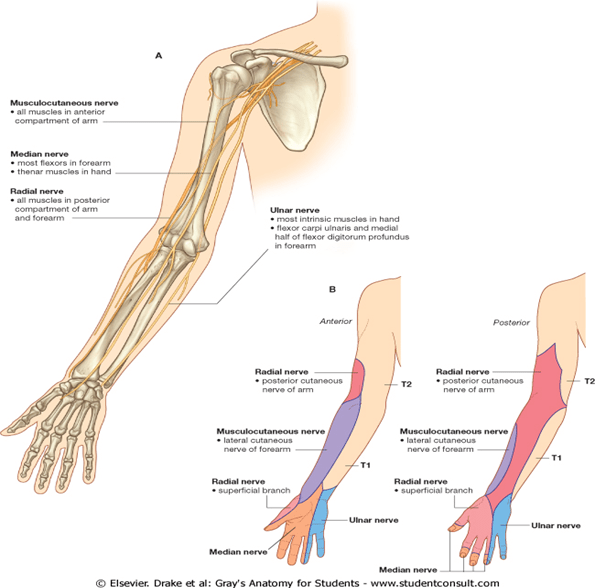

Musculocutaneous, median, and ulnar nerves in the arm.

The ulnar nerve enters the arm with the median nerve and axillary artery (Fig. 7.67). It passes through proximal regions medial to the axillary artery. In the middle of the arm, the ulnar nerve penetrates the medial intermuscular septum and enters the posterior compartment where it lies anterior to the medial head of the triceps brachii muscle. It passes posterior to the medial epicondyle of the humerus and then into the anterior compartment of the forearm.

The radial nerve originates from the posterior cord of the brachial plexus and enters the arm by crossing the inferior margin of the teres major muscle alongwith profunda brachii vessels in the lower triangular space ,the medial border of the space formed by the triceps and lateral border by humerus with apex down and base formed by the Teres Major above.  . As it enters the arm, it lies posterior to the brachial artery. Accompanied by the profunda brachii artery, the radial nerve enters the posterior compartment of the arm by passing through the triangular interval.As the radial nerve passes diagonally, from medial to lateral, through the posterior compartment, it lies in the radial groove directly on bone. On the lateral side of the arm, it passes anteriorly through the lateral intermuscular septum and enters the anterior compartment where it lies between the brachialis muscle and a muscle of the posterior compartment of the forearm-the brachioradialis muscle, which attaches to the lateral supraepicondylar ridge of the humerus. The radial nerve enters the forearm anterior to the lateral epicondyle of the humerus, just deep to the brachioradialis.The radial nerve at the elbow lies deep in a groove between brachialis and brachioradialis proximally and extensor carpi radialis distally. It divides into the superficial terminal branch and the posterior interosseous nerve just anterior to the lateral epicondyle

Radial nerve injury in the arm:-The radial nerve is tightly bound with the profunda brachii artery between the medial and lateral heads of the triceps brachii muscle in the radial groove. If the humerus is fractured the radial nerve may become stretched or transected in this region leading to permanent damage and loss of function. This injury is typical (Fig. 7.69) and the nerve should always be tested when a fracture of the midshaft of the humerus is suspected. The patient typically presents with wrist drop (due to denervation of the extensor muscles) and sensory changes over the dorsum of the hand.

In the arm and forearm the median nerve is usually not injured by trauma because of its relatively deep position. The commonest neurologic problem associated with the median nerve is compression beneath the flexor retinaculum at the wrist (carpal tunnel syndrome).


Muscle Origin Insertion Innervation Function

Brachioradialis Proximal part of lateral supraepicondylar ridge of humerus and adjacent inter-muscular septum Lateral surface of distal end of radius Radial nerve [C5,C6] before division into superficial and deep branches Accessory flexor of elbow joint when forearm is mid-pronated

Extensor carpi radialis longus Distal part of lateral supraepicondylar ridge of humerus and adjacent intermuscular septum Dorsal surface of base of metacarpal II Radial nerve [C6,C7] before division into superficial and deep branches Extends and abducts the wrist

Extensor carpi radialis brevis Lateral epicondyle of humerus and adjacent intermuscular septum Dorsal surface of base of metacarpals II and III Deep branch of radial nerve [C7,C8] before penetrating supinator muscle Extends and abducts the wrist

Extensor digitorum Lateral epicondyle of humerus and adjacent intermuscular septum and deep fascia Four tendons, which insert via ‘extensor hoods’ into the dorsal aspects of the bases of the middle and distal phalanges of the index, middle, ring, and little fingers Posterior interosseous nerve [C7,C8] Extends the index, middle, ring, and little fingers; can also extend the wrist

Extensor digiti minimi Lateral epicondyle of humerus and adjacent intermuscular septum together with extensor digitorum Dorsal hood of the little finger Posterior interosseous nerve [C7,C8] Extends the little finger

Extensor carpi ulnaris Lateral epicondyle of humerus and posterior border of ulna Tubercle on the base of the medial side of metacarpal V Posterior interosseous nerve [C7,C8] Extends and adducts the wrist

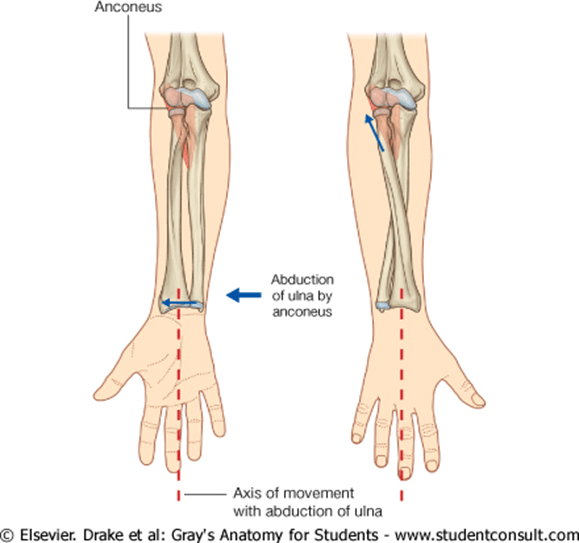

Anconeus Lateral epicondyle of humerus Olecranon and proximal posterior surface of ulna Radial nerve [C6 to C8] (via branch to medial head of triceps brachii) Abduction of the ulna in pronation; accessory extensor of the elbow joint

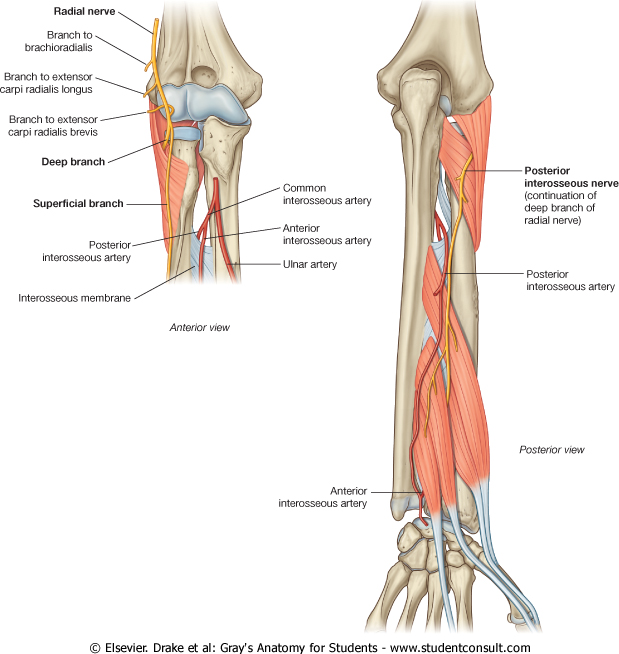

There is some variation in the level at which branches of the radial nerve arise from the main trunk in different subjects. Branches to extensor carpi radialis brevis and supinator may arise from the main trunk of the

radial nerve or from the proximal part of the posterior interosseous nerve, but almost invariably above the arcade of Frohse.

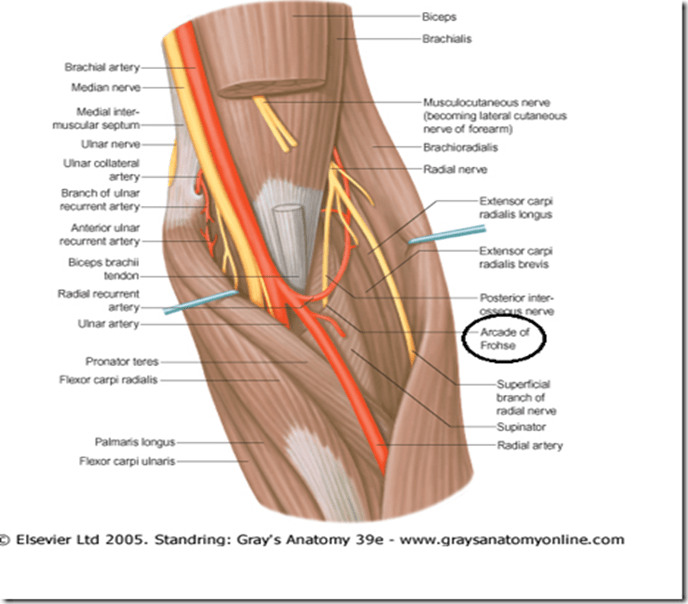

Arcade of Frohse, sometimes called the supinator arch is the most superior part of the superficial layer of the supinator muscle, and is a fibrous arch over the posterior interosseous nerve. The arcade of Frohse is the most frequent site of posterior interosseous nerve entrapment, and is believed to play a role in causing progressive paralysis of the posterior interosseous nerve, both with and without injury.


The deep branch of radial nerve may be damaged during an operation for exposure of the head of the radius.Since the extensor carpi radialis longus and brevis are spared wrist drop does not occur.

 A patient is brought to the emergency with history of trauma to his right upper limb. Extension of metacarpophalangeal is lost. There is no wrist drop and extension of IP joint is normal. The most likely nerve involved is :
(A)Ulnar nerve
(B)Median nerve
(C)
Radial nerve
(D)Posterior-interosseous nerve

Injury to radial nerve in lower part of spiral groove:
A.Spares nerve supply to extensor carpi radialis longus
B.Results in paralysis of anconeus muscle
C.Leaves extensions at elbow joint intact
D.Weakens pronation movement

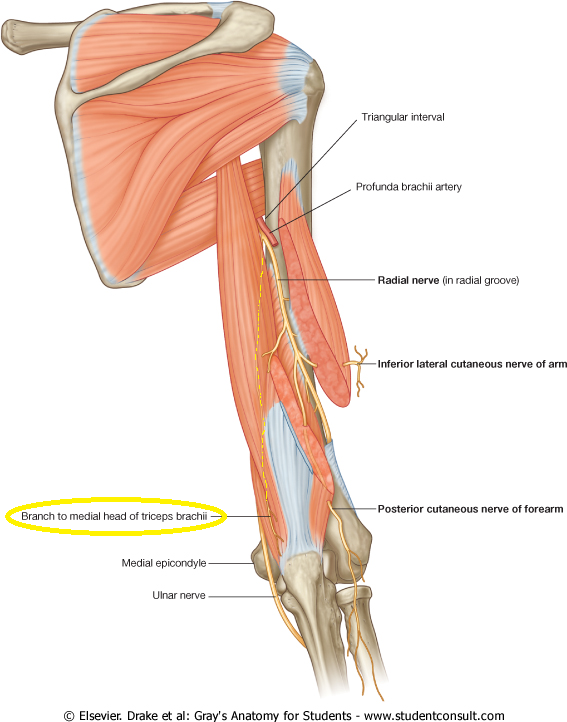

One of the branches to the medial head of the triceps brachii muscle arises before the radial nerve’s entrance into the posterior compartment and passes vertically down the arm in association with the ulnar nerve

Damage to the radial nerve in the spinal groove spares which muscle
A.Lateral head of triceps
B.Long head of triceps
C.Medial head of triceps
D.Anconeus

Controversial Question

Injury to radial nerve in lower part of spiral groove:
A.Spares nerve supply to extensor carpi radialis longus— True
B.Results in paralysis of anconeus muscle—false Upper part of groove branch is given
C.Leaves extensions at elbow joint intact—-False  Weakens
D.Weakens pronation movement—-false Median nerve supplies pronators

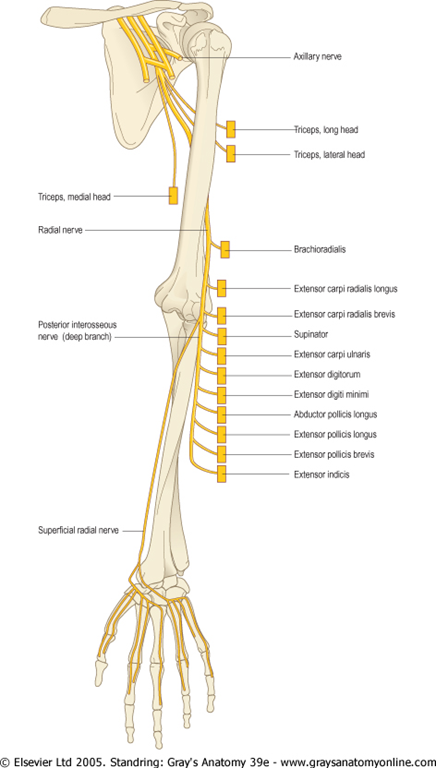

RADIAL NERVE (see above diagram) :-The radial nerve descends behind the third part of the axillary artery and the upper part of the brachial artery, anterior to subscapularis and the tendons of latissimus dorsi and teres major. With the profunda brachii artery it inclines dorsally, passing through the triangular space below the lower border of teres major, between the long head of triceps and the humerus. Here it supplies the long head of triceps, and gives rise to the posterior cutaneous nerve of the arm (not forearm)which supplies the skin along the posterior surface of the upper arm. It then spirals obliquely across the back of the humerus, lying posterior to the uppermost fibres of the medial head of triceps which separate the nerve from the bone in the first part of the spiral groove. Here it gives off a muscular branch to the lateral head of triceps and a branch which passes through the medial head of triceps to anconeus. On reaching the lateral side of the humerus it pierces the lateral intermuscular septum to enter the anterior compartment; it then descends deep in a furrow between brachialis and proximally brachioradialis, then more distally extensor carpi radialis longus. Anterior to the lateral epicondyle it divides into superficial and deep terminal rami.

The branches of the radial nerve in the upper arm are: muscular, cutaneous, articular and superficial terminal and posterior interosseous.

Muscular branches :-Muscular branches supply triceps, anconeus, brachioradialis, extensor carpi radialis longus and brachialis in medial, posterior and lateral groups. Medial muscular branches arise from the radial nerve on the medial side of the arm. They supply the medial and long heads of triceps; the branch to the medial head is a long, slender filament which, lying close to the ulnar nerve as far as the distal third of the arm, is often termed the ulnar collateral nerve. A large posterior muscular branch arises from the nerve as it lies in the humeral groove. It divides to supply the medial and lateral heads of triceps and anconeus, that for the latter being a long nerve which descends in the medial head of triceps and partially supplies it; it is accompanied by the middle collateral branch of the profunda brachii artery and passes behind the elbow joint to end in anconeus. Lateral muscular branches arise in front of the lateral intermuscular septum; they supply the lateral part of brachialis, brachioradialis and extensor carpi radialis longus.



Untitled

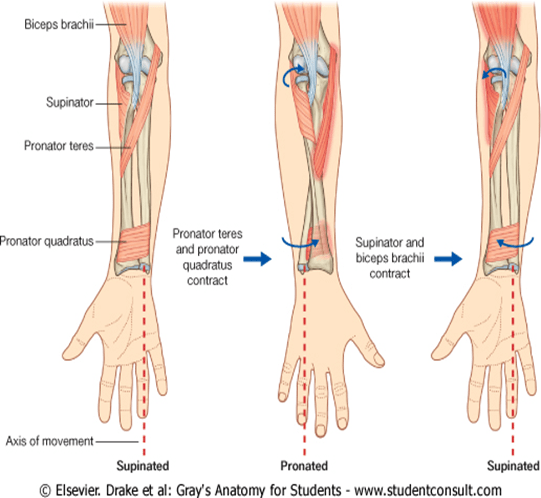

15. Pronator teres in addition to the main pronator of forearm also causes flexion at elbow joint.

16.”D”eep muscles of the front of forearm (Flexor digitorum  Profundus & Flexor pollicis longus)  acts on the “D”istal IP joint.

17. Flexor digitorum superficialis acts on the Proximal IP joint.

18.Flexor “carpi” radialis:- Flexes the wrist and abductor of the wrist.RADIALIS(RADIUS)=LATERAL..so acts laterally.Carpi—so acts on wrist.

Palmaris Longus:- Absent in 10% of subjects.

Flexor carpi ulnaris:-Flexes and adduct the wrist.Ulnaris—so adduct.Carpi –so flexes the wrist.

All muscles except the flexor carpi ulnaris in the forearm are supplied by the median nerve.

The pisiform bone is a seasmoid bone in the tendon of Flexor carpi ulnaris.

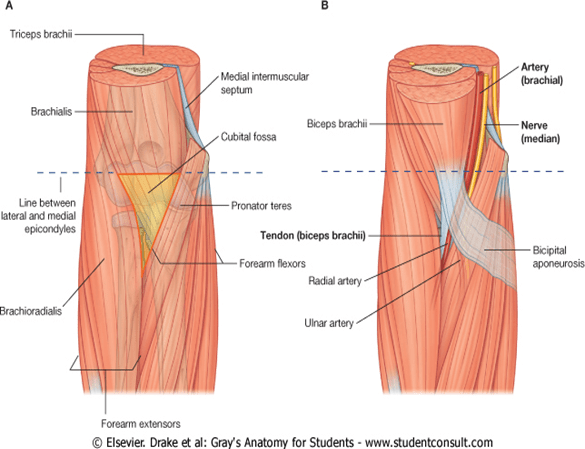

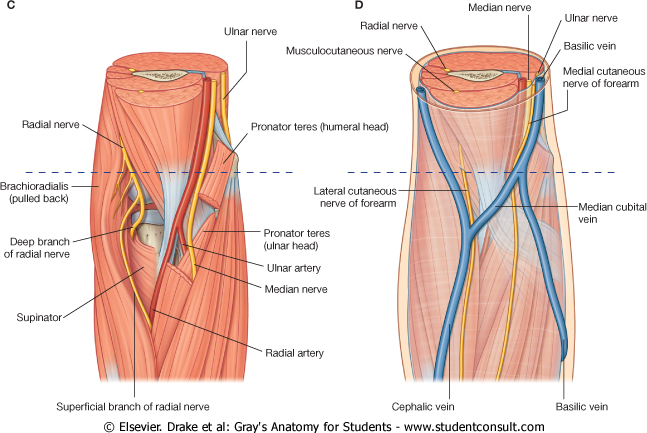

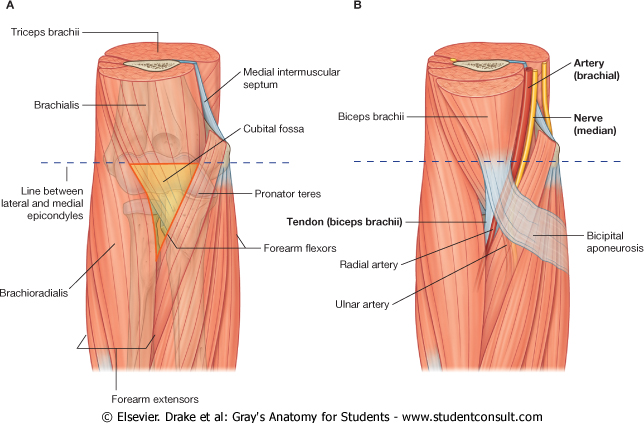

19.The Cubital Fossa:-The cubital fossa is an important area of transition between the arm and the forearm. It is located anterior to the elbow joint and is a triangular depression formed between two forearm muscles:

  • the brachioradialis muscle originating from the lateral supraepicondylar ridge of the humerus;
  • the pronator teres muscle originating from the medial epicondyle of the humerus image


20. Ape thumb Deformity:-   Injury of median nerve at wrist leads to wasting of thenar muscles and the thumb is adducted and laterally rotated.:- ABDUCTION IS LOST,OPPOSITION IS LOST,FLEXION IS LOST.Ape hand deformity is a deformity in humans who cannot move the thumb outside of the plane of the palm. It is caused by inability to oppose the thumb and the limited abduction of the thumb.

Apehand_1

              Ape Hand Deformity

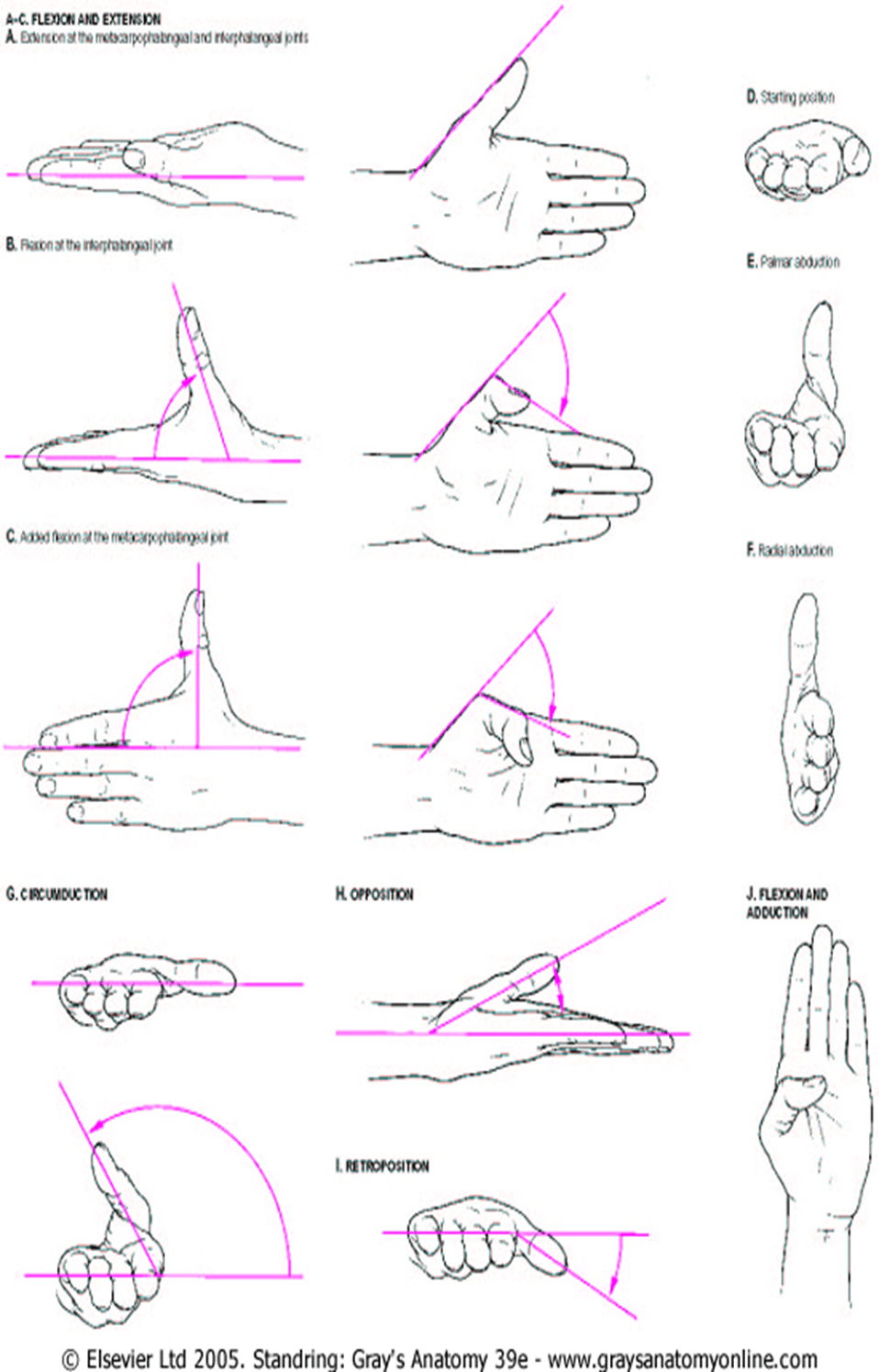

Flexion and extension should be confined to motion at the interphalangeal or metacarpophalangeal joints (Fig. 53.49A-C). Palmar abduction (Fig. 53.49D, E), in which the first metacarpal moves away from the second at right angles to the plane of the palm, and radial abduction (Fig. 53.49D, F), in which the first metacarpal moves away from the second with the thumb in the plane of the palm, occur at the carpometacarpal joint. The opposite of radial abduction is ulnar adduction, or transpalmar adduction, in which the thumb crosses the palm towards its ulnar border. In clinical practice the term adduction is generally used without qualification. Circumduction describes the angular motion of the first metacarpal, solely at the carpometacarpal joint, from a position of maximal radial abduction in the plane of the palm towards the ulnar border of the hand, maintaining the widest possible angle between the first and second metacarpals (Fig. 53.49G). Lateral inclinations of the first phalanx maximize the extent of excursion of the circumduction arc. Opposition is a composite position of the thumb achieved by circumduction of the first metacarpal, internal rotation of the thumb ray and maximal extension of the metacarpophalangeal and interphalangeal joints (Fig. 53.49H). Retroposition is the opposite to opposition (Fig. 53.49I). Flexion adduction is the position of maximal transpalmar adduction of the first metacarpal: the metacarpophalangeal and interphalangeal joints are flexed and the thumb is in contact with the palm (Fig. 53.49J).

21.

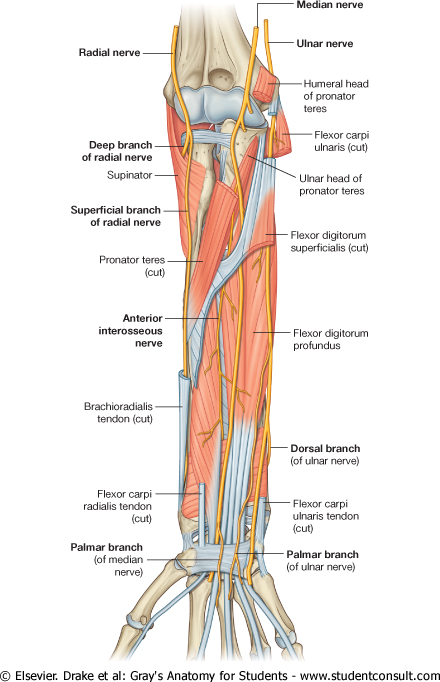

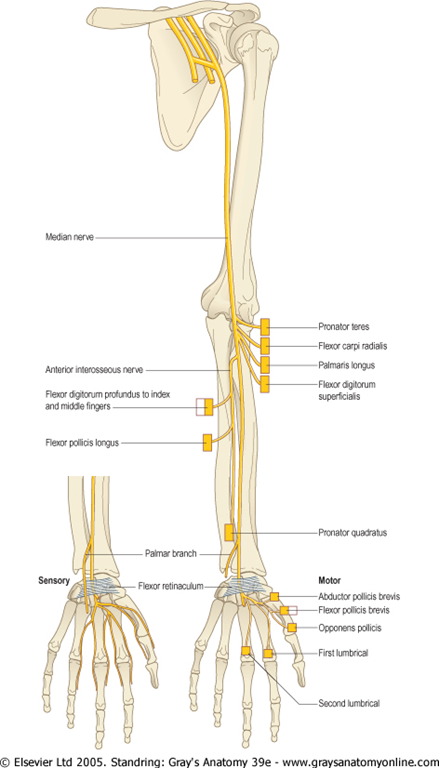

Most branches to the muscles in the superficial and intermediate layers of the forearm originate medially from the nerve just distal to the elbow joint:

  • The largest branch of the median nerve in the forearm is the anterior interosseous nerve, which originates between the two heads of pronator teres, passes distally down the forearm with the anterior interosseous artery, innervates the muscles in the deep layer (flexor pollicis longus, the lateral half of flexor digitorum profundus, and pronator quadratus) and terminates as articular branches to joints of the distal forearm and wrist.
  • A small palmar branch originates from the median nerve in the distal forearm immediately proximal to the flexor retinaculum , passes superficially into the hand and innervates the skin over the base and central palm. This palmar branch is spared in carpal tunnel syndrome because it passes into the hand superficial to the flexor retinaculum of the wrist.
    Since the terminal phalanges of little and ring fingers are supplied by ulnar nerve(Ulnar nerve supplies the medial half of digital profundus muscle) These Fingers DIP are spared in Median nerve injury.

Also the PIP joint of thumb is spared as flexor pollicis brevis deep supplied by ulnar nerve.

There is one IP joint  in the thumb and MCP joint.Flexor pollicis brevis causes flexion at MCP jt. and Flexor pollicis longus causes flexion at IP joint of thumb.Both supplied by Median nerve.

So thumb is adducted(abduction is lost due to abductor pollicis brevis paralysisi) and laterally rotated 9as medial rotation by the opponens pollicis is lost.)

Flexor pollicis brevis :The flexor pollicis brevis muscle is distal to abductor pollicis brevis.It originates mainly from the tubercle of the trapezium and adjacent flexor retinaculum, but it may also have deeper attachments to other carpal bones and associated ligaments. It inserts into the lateral side of the base of the proximal phalanx of the thumb. The tendon often contains a sesamoid bone(DNB 2010).Flexor pollicis brevis flexes the metacarpophalangeal joint of the thumb.

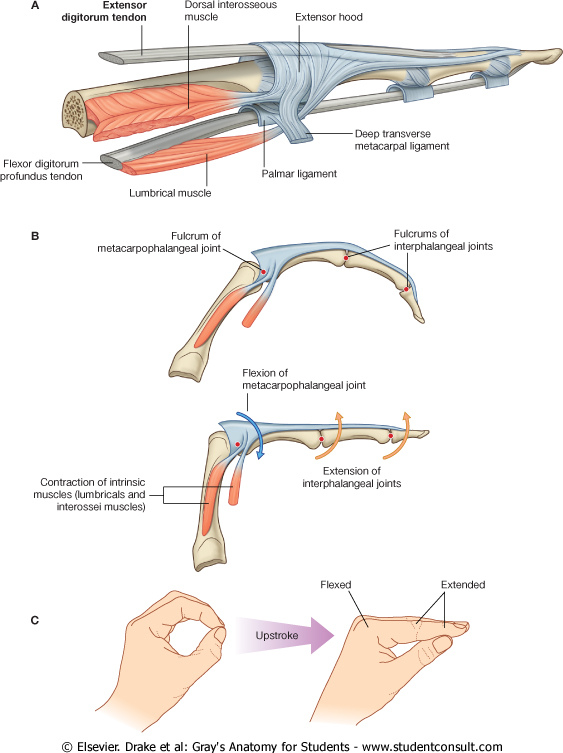

22. Extensor Hoods:-


The tendons of the extensor digitorum and extensor pollicis longus muscles pass onto the dorsal aspect of the digits and expand over the proximal phalanges to form complex ‘extensor hoods‘ or ‘dorsal digital expansions‘ .

Because force from the small intrinsic muscles of the hand is applied to the extensor hood distal to the fulcrum of the metacarpophalangeal joints, the muscles flex these joints .Simultaneously, the force is transferred dorsally through the hood to extend the interphalangeal joints. This ability to flex the metacarpophalangeal joints, while at the same time extending the interphalangeal joints, is entirely due to the intrinsic muscles of the hand working through the extensor hoods. This type of precision movement is used in the ‘upstroke’ when writing a ‘t’.

In the index, middle, ring, and little fingers, the lumbrical, interossei, and abductor digiti minimi muscles attach to the extensor hoods. In the thumb, the adductor pollicis and abductor pollicis brevis muscles insert into and anchor the extensor hood.

Q:-The lumbricals muscles extend the MCP joints and extend the IP joints of the digit in which they insert.

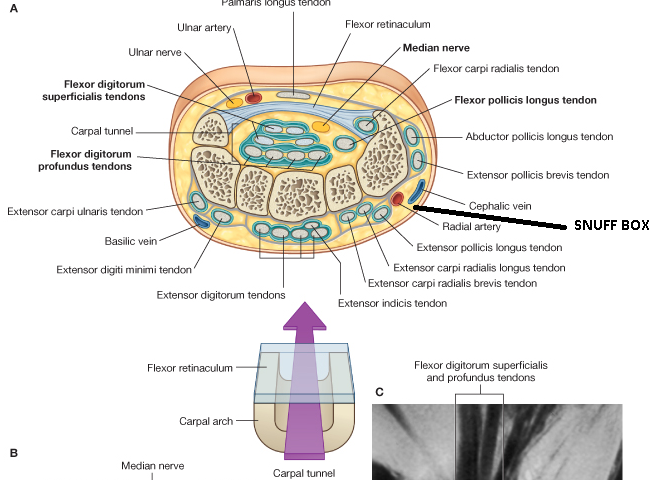

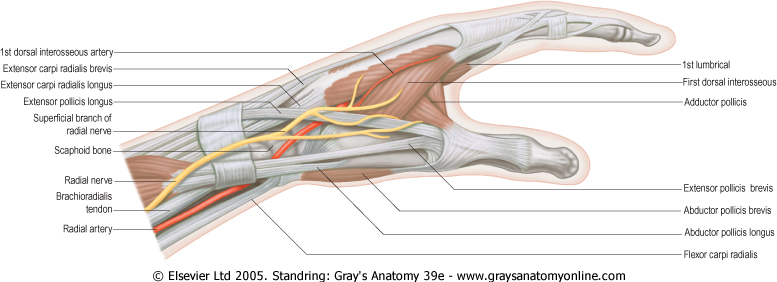

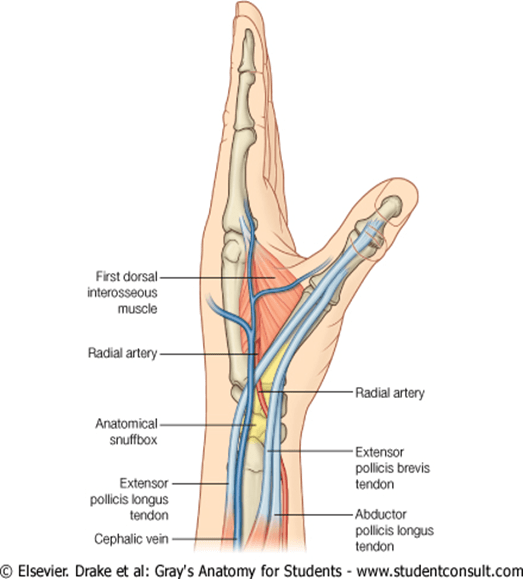

23. Anatomical Snuff Box:-

Regarding the anatomical snuff box which of the following is true:
(A)Abductor Pollicis longus forms the posterior wall. (it forms the anterior wall)
(B)Abductor pollicis longus and Extensor pollicis brevis form the anterior wall. ….ans
(C)Basilus vein forms the roof.            (its cephalic not basilic)
(D)Floor is formed by Extensor carpi radialis longus and brevis.??

Basilic vein is on the ulnar side not on the radial side-Remember


The ‘anatomical snuffbox’ is a term given to the triangular depression formed on the posterolateral side of the wrist and metacarpal I by the extensor tendons passing into the thumb . Historically, ground tobacco (snuff) was placed in this depression before being inhaled into the nose. The base of the triangle is at the wrist and the apex is directed into the thumb. The impression is most apparent when the thumb is extended:

  • the lateral border is formed by the tendons of the abductor pollicis longus and extensor pollicis brevis;
  • the medial border is formed by the tendon of the extensor pollicis longus;
  • the floor of the impression is formed by the scaphoid and trapezium, and distal ends of the tendons of the extensor carpi radialis longus and extensor carpi radialis brevis.

The radial artery passes obliquely through the anatomical snuffbox, deep to the extensor tendons of the thumb and lies adjacent to the scaphoid and trapezium.

Terminal parts of the superficial branch of the radial nerve pass subcutaneously over the snuffbox as does the origin of the cephalic vein from the dorsal venous arch of the hand.


After passing around Lister’s tubercle, the tendon of extensor pollicis longus crosses the tendons of extensor carpi radialis brevis and longus obliquely .When the thumb is fully extended the tendon is separated from extensor pollicis brevis by a triangular depression or fossa, the so-called ‘anatomical snuff-box’. Bony structures can be felt in the floor of this fossa by deep palpation. In proximal to distal order they are the radial styloid, the smooth convex articular surface of the scaphoid, the trapezium, and the base of the first metacarpal. The latter are more easily felt during metacarpal movement, while the scaphoid is more easily felt during adduction and abduction of the hand

The tendon of extensor pollicis brevis can be felt at the radial border of the anatomical snuff-box, lying medial to the tendon of abductor pollicis longus, when the metacarpophalangeal joint of the thumb is extended against resistance

The tendon of extensor pollicis longus can be palpated at the ulnar border of the anatomical snuff-box when the thumb is extended at the interphalangeal joint against resistance.

MOST IMP POINT:- ABDUCTOR POLLICIS LONGUS LIES IN THE POST COPARTMENT OF FOREARM/WRIST.

ABDUCTOR POLLICIS BREVIS IS A THENAR MUSCLE.

SO NERVE SUPPLY OF FORMER IS RADIAL NERVE WHILE NERVE SUPPLY OF LATER IS MEDIAN NERVE.

24.The carpal tunnel contains all of the following important structures except:
A.Median Nerve.
B.Flexor pollicis longus.
C.
Flexor carpi radialis.
D.Flexor digitorum superficialis.




The structures passing superficial to the flexor retinaculum are:- a)the tendon of the palmaris longus b)the palmar cutaneous branch of the median nerve c)the palmar cutaneous branch of the ulnar nerve d)the ulnar vessels e) the ulnar nerve.

The ulnar artery, ulnar nerve, and tendon of palmaris longus pass into the hand anterior to the flexor retinaculum and therefore do not pass through the carpal tunnel .

The four tendons of the flexor digitorum profundus, the four tendons of the flexor digitorum superficialis, and the tendon of the flexor pollicis longus pass through the carpal tunnel, as does the median nerve,Others are radial bursa and ulnar bursa

All the tendons of the flexor digitorum profundus and flexor digitorum superficialis are surrounded by a single synovial sheath; a separate sheath surrounds the tendon of the flexor pollicis longus. The median nerve is anterior to the tendons in the carpal tunnel.

The tendon of flexor carpi radialis is surrounded by a synovial sheath and passes through a tubular compartment formed by the attachment of the lateral aspect of the flexor retinaculum to the margins of a groove on the medial side of the tubercle of trapezium.It lies between the retinaculum and its deep slip,in the grrove on the trapezium.

25. Ofcourse the lumbricals do not insert into the thumb as polllicis has its own separate  thenar muscles.

So 1st lumbricals insert into 2nd MCP joint and so-on so that the 4th lumbrical inserted into the 5th MCP joint..

So 1st lumbicals acts on the index finger but not the thumb or 1st MCP joint,,,imp.They arise from the tendon of the Flexor digitorum profundus (as FLEX DIGITORUM PROFUNDUS is obviously inserted into the 2nd to 5th digits)and inserted into the DDE(dorsal digital expansion of Extensor digitorum.

26.Palmar interossei are abductors while Dorsal interossei are adductors of the fingers

27. All Interossei and lumbricals Flex the MCP and Extend the IP joint.

28.Midpalmar Space:-Laterally by the intermediate palmar septum attaching the palmar aponeurosis to the third metacarpal bone.

Medially by the the medial palmar septum.

29.

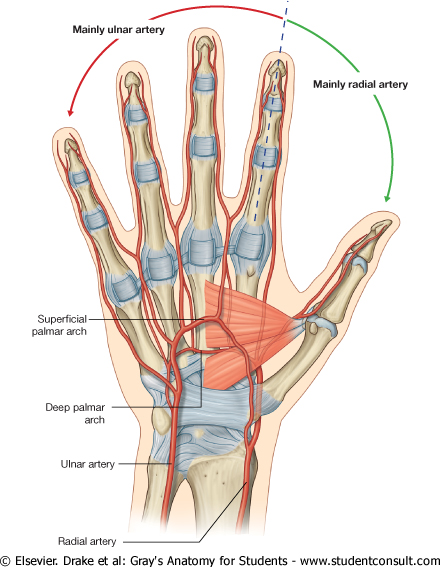

The radial artery curves around the lateral side of the wrist, passes over the floor of the anatomical snuffbox and into the deep plane of the palm by penetrating anteriorly through the back of the hand . It passes between the two heads of the first dorsal interosseous muscle and then between the two heads of the adductor pollicis to access the deep plane of the palm and form the deep palmar arch.

Allen’s test:-To test for adequate anastomoses between the radial and ulnar arteries, compress both the radial and ulnar arteries at the wrist, then release pressure from one or the other, and determine the filling pattern of the hand. If there is little connection between the deep and superficial palmar arteries only the thumb and lateral side of the index finger will fill with blood (become red) when pressure on the radial artery alone is released

The deep palmar arch passes medially through the palm between the metacarpal bones and the long flexor tendons of the digits. On the medial side of the palm, it communicates with the deep palmar branch of the ulnar artery .

ANCONEUS

Anconeus is a small, triangular muscle posterior to the elbow joint and is partially blended with triceps (Figs 52.15, 52.17). Anconeus arises by a separate tendon from the posterior surface of the lateral epicondyle of the humerus. Its fibres diverge medially towards the ulna, covering the posterior aspect of the annular ligament, and are attached to the lateral aspect of the olecranon and proximal quarter of the posterior surface of the shaft of the ulna.


The extent to which anconeus fuses with triceps or extensor carpi ulnaris is variable



Anconeus assists triceps in extending the elbow joint. Its major function is not clear, but it may be the control of ulnar abduction in pronation, which is necessary if the forearm is to turn over the hand without translating it medially. In this way a tool can be revolved ‘on the spot’ or it can be swept through an arc.Anconeus abducts the ulna during pronation to maintain the center of the palm over the same point when the hand is flipped.

                        JOINTS

Which is true about synovial joint ? :
(A)Stability is inversely proportional to mobility.FALSE*(The mechanical function of the synovial joints is to permit motion whilst carrying functional loads and remaining stable)
(B)Hyaline cartilage covers articular surface of all synovial joints.TRUE—MOSTLY
(C) Metacarpo-phalangeal joint is a hinge joint. FALSE IT IS CONDYLOID
(D)”Cartilage usually divides the joint into two cavities”FALSE-ARTICULAR DISC DIVIDES.

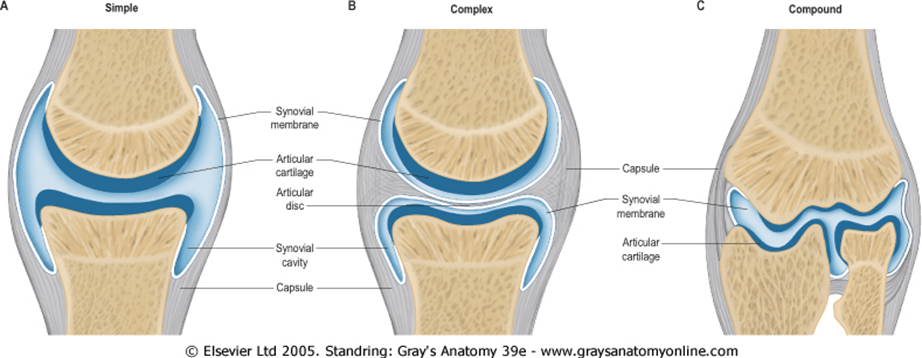

A and B are purely diagrammatic and not related to particular joints. C, however, is a simplified representation of some features of an elbow joint but the complicated contours due to the olecranon, coronoid and radial fossae and profiles of articular fat pads present in a true section have been omitted.

Articular surfaces are mostly formed by a special variety of hyaline cartilage, reflecting their preformation as parts of cartilaginous models in embryonic life. Exceptionally, surfaces of the sternoclavicular and acromioclavicular joints and both temporomandibular surfaces are covered by dense fibrous tissue which contains isolated groups of chondrocytes and little surrounding matrix – a legacy of their formation by intramembranous ossification. Articular cartilage has a wear-resistant, low-frictional, lubricated surface, which is slightly compressible and elastic and is thus ideally constructed for easy movement over a similar surface. It is also able to absorb large forces of compression and shear generated by gravity and muscular power.

A fibrous capsule completely encloses a joint except where it is interrupted by synovial protrusions; the exceptions are described with the individual joints. The capsule is composed of parallel but interlacing bundles of white collagen fibres which form a cuff whose ends are attached continuously round the articular ends of the bones concerned.

An articular disc or meniscus occurs between articular surfaces where congruity is low. It consists of fibrocartilage, where the fibrous element is usually predominant, and is not covered by synovial membrane. A disc may extend across a synovial joint, dividing it structurally and functionally into two synovial cavities. Discs are connected at their periphery to fibrous capsules, usually by vascularized connective tissue, so that they become invaded by vessels and afferent and motor (sympathetic) nerves; sometimes the union is closer and stronger, as in the knee and temporomandibular joints. Their main part contains few cells, but their surfaces may be covered by an incomplete stratum of flat cells, continuous at the periphery with adjacent synovial membrane

Synovial Joints Joint capsule containing synovial membrane and
synovial fluid
1. Gliding Flattened or slightly curved articulating surfaces Sliding Intercarpal and intertarsal joints
2. Hinge Concave surface of one bone articulates with Bending motion in one plane Knee; elbow; joints of phalanges
convex surface of another
3. Pivot Conical surface of one bone articulates with Rotation about a central axis Atlantoaxial joint; proximal
depression of another radioulnar joint

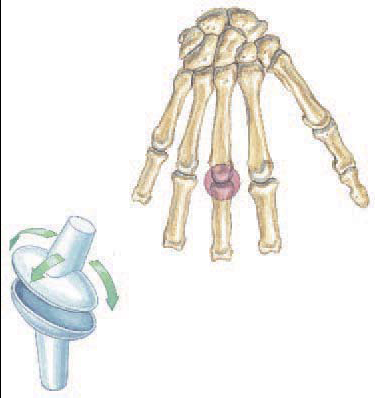

4. Condyloid Oval condyle of one bone articulates with Movement in two planes Radiocarpal joint;
elliptical cavity of another metacarpophalangeal joint
5. Saddle Concave and convex surface on each Wide range of movements Carpometacarpal joint of thumb
articulating bone

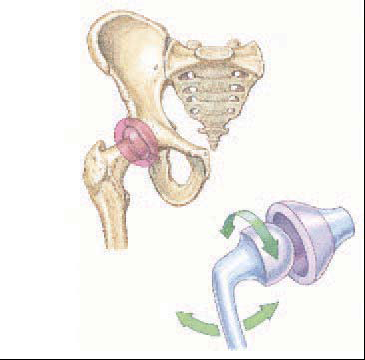

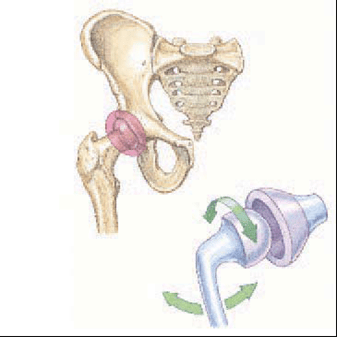

6. Ball-and-socket Rounded convex surface of one bone articulates Movement in all planes and Shoulder and hip joints
with cuplike socket of another rotation

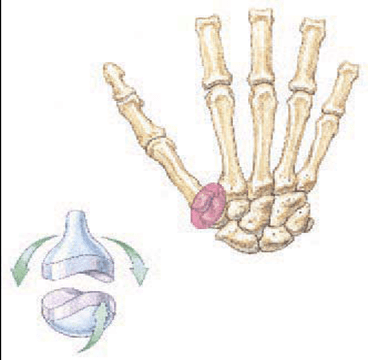

           Saddle joint-CARPOMETACARPAL                                                   BALL & SOCKET                                                                    HINGE                                                  CONDYLOID(ELLIPSOID)-MCP

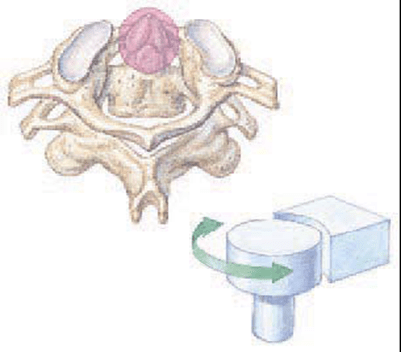

                            PIVOT  atlas with the axis                                                                        GLIDING-intercarpal

Ellipsoid joints:- Ellipsoid joints are biaxial, and consist of an oval, convex surface apposed to an elliptical concavity, e.g. radiocarpal and metacarpophalangeal joints. Primary movements are about two orthogonal axes, e.g. flexion-extension, abduction-adduction, which may be combined as circumduction; rotation around the third axis is largely prevented by general articular shape.

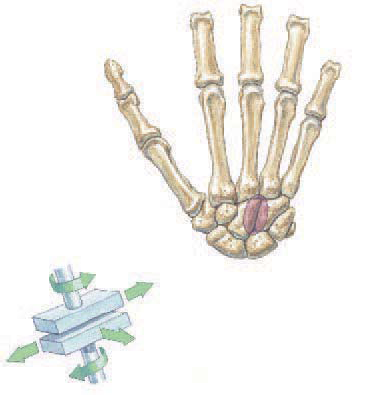

Plane joints(GLIDING) :- Plane joints are appositions of almost flat surfaces (e.g. intermetatarsal and some intercarpal joints). Slight curvature is usual, although often disregarded, and movements are considered to be pure translations or sliding between bones. However, in precise dynamics even slight curvatures cannot be ignored

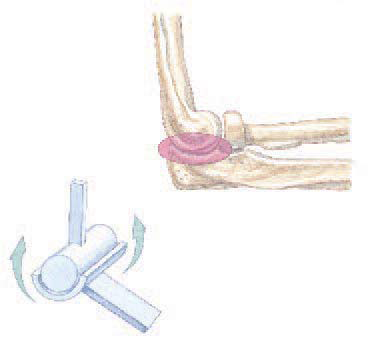

Ginglymi (hinge) joints:- Ginglymi resemble hinges and restrict movement to one plane, i.e. they are uniaxial. They have strong collateral ligaments to aid this, e.g. interphalangeal and humero-ulnar joints. The surfaces of such biological hinges differ from regular mechanical cylinders in that their profiles are not arcs but varyingly spiral, and therefore motion is not truly about a single axis.

Posted in Medical | Tagged: , , , | 11 Comments »

Anatomy Notes Vol.1 with Orthopaedics

Posted by Dr KAMAL DEEP on December 17, 2010

Note:-Bolded or underlined statements are previous questions.

1.Attachments on the scapula:-No attachments for Pectoralis Major.




2.SITminor(Supraspinatus,Infraspinatus,Teres Minor inserted on gretaer tubercle of humerus on posterior side of top of humerus. All have attachments on scapula.Subscapularis inserted on Lesser tubercle of humerus.Pectoralis minor is inserted on coracoid process.

3.Tip of coracoid process:- Short Head of biceps and Coracobrachialis.

4.Carpal Bones :-


Proximal row:- ScaLunaTriqPisi (Scaphoid Lunate Triquetral Pisiform):Lateral to medial

Distal Row :- Trapezium,Trapezoid,Capitate and Hamate: Lateral to medial

The pisiform is a sesamoid bone in the tendon of flexor carpi ulnaris and articulates with the anterior surface of the triquetrum.

Most common site of scaphoid fracture is :
(A)Waist
(B)Proximal fragment
(C)Distal fragment
(D)Tilting of the lunate

Fractures of the scaphoid are the most common of carpal fractures. They usually occur in young adult men following falls on their outstretched palms. Experimental studies have shown that the force must be applied to the radial side of the palm, with the wrist extended a minimum of 95° (102). In that position, the scaphoid is the only carpal bone in contact with the radius. The proximal part of the scaphoid assumes a wedge-shaped configuration between the radius and capitate, where it is supported by the radial collateral and radiocapitate ligaments. The distal pole of the scaphoid, however, is unsupported and capsular structures in the area are lax. It is the distal pole that receives most of the applied force and the bone fractures at its most vulnerable area, its waist.

The profile of the bone is best seen on PA and posterior-oblique views with the wrist in ulnar deviation ( The posterior-oblique view visualizes the carpal bones on the radial side of the wrist, particularly the scaphoid, and the anterior-oblique view visualizes the pisiform and, to a lesser extent, the hamate)

Although radiographs taken immediately after the injury may be negative, the scaphoid should still be considered fractured until proven otherwise. Immobilize the wrist in a thumb spica splint or cast and repeat radiographs in 1 to 2 weeks. If there is a fracture, it should then be evident by the appearance of bone resorption at the fracture site. Occasionally, bone resorption does not appear until 3 weeks after the fracture, and even then radiographs may remain inconclusive. In these cases, radionuclide imaging with technetium-99m (99mTc) can be helpful (32). Although bone scans are highly sensitive and are generally positive within 24 h of a fracture, they are nonspecific. Therefore, although a fracture can be ruled out with a negative scan, a positive scan requires more specific imaging studies. Vibratory testing, using audible “intrasound” frequencies between 20 and 20,000 Hz (infrasound less than 20 Hz and ultrasound greater than 20,000 Hz are inaudible), has been shown to be effective in diagnosing occult scaphoid fractures (8). The test is considered positive when pain is sufficient to cause an immediate “positive retraction response.” The definitive test is a CT scan.

The second method of classification is based on the site of the fracture within the scaphoid, which is separated into proximal, middle, and distal thirds. Most fractures involve the middle third of the bone. They usually heal if they are not displaced, and there is no intercarpal instability.Q:- Fractures in the proximal third, sometimes referred to as the proximal pole of the scaphoid, have the highest incidence of nonunion and avascular necrosis because of the pattern of intraosseous circulation. The blood supply to the scaphoid enters dorsally and distally and traverses the bone in a proximal direction (36). Fractures in the distal third of the scaphoid are the rarest and tend to heal promptly because of the excellent blood supply in the area. Distal-third fractures include intraarticular fractures and fractures of the tubercle.

Q:-So non-union and delayed union is more common than malunion.

Avascular necrosis of the scaphoid (Priser’s disease) and of the lunate (Kienbock’s disease).

5.The anterior group of lymph nodes lie along the lateral thoracic vessels.Approximately 75% is via lymphatic vessels that drain laterally and superiorly into axillary nodes.

As indicated in Fig. 17-8, the lymph node groups are assigned levels according to their anatomic relationship to the pectoralis minor muscle(not pectoralis major). Lymph nodes located lateral to or below the lower border of the pectoralis minor muscle are referred to as level I lymph nodes, which include the axillary vein, external mammary(anterior axillary or pectoral group), and scapular groups. Lymph nodes located superficial or deep to the pectoralis minor muscle are referred to as level II lymph nodes, which include the central and interpectoral groups. Lymph nodes located medial to or above the upper border of the pectoralis minor muscle are referred to as level III lymph nodes, which consist of the subclavicular group. The plexus of lymph vessels in the breast arises in the interlobular connective tissue and in the walls of the lactiferous ducts and communicates with the subareolar plexus of lymph vessels. Efferent lymph vessels from the breast pass around the lateral edge of the pectoralis major muscle and pierce the clavipectoral fascia, ending in the external mammary (anterior, pectoral) group of lymph nodes. Some lymph vessels may travel directly to the subscapular (posterior, scapular) group of lymph nodes. From the upper part of the breast, a few lymph vessels pass directly to the subclavicular (apical) group of lymph nodes. The axillary lymph nodes usually receive >75% of the lymph drainage from the breast. The rest is derived primarily from the medial aspect of the breast, flows through the lymph vessels that accompany the perforating branches of the internal mammary artery, and enters the parasternal (internal mammary) group of lymph nodes

clip_image002

Axillary lymph node groups. Level I includes lymph nodes located lateral to the pectoralis minor muscle (PM); level II includes lymph nodes located deep to the PM; and level III includes lymph nodes located medial to the PM. Arrows indicate the direction of lymph flow. The axillary vein with its major tributaries and the supraclavicular lymph node group are also illustrated.

The boundaries for lymph drainage of the axilla are not well demarcated, and there is considerable variation in the position of the axillary lymph nodes. The six axillary lymph node groups recognized by surgeons (Figs. 17-7 and 17-8) are (a) the axillary vein group (lateral), which consists of four to six lymph nodes that lie medial or posterior to the vein and receive most of the lymph drainage from the upper extremity; (b) the external mammary group (anterior or pectoral group), which consists of five or six lymph nodes that lie along the lower border of the pectoralis minor muscle contiguous with the lateral thoracic vessels and receive most of the lymph drainage from the lateral aspect of the breast; (c) the scapular group (posterior or subscapular), which consists of five to seven lymph nodes that lie along the posterior wall of the axilla at the lateral border of the scapula contiguous with the subscapular vessels and receive lymph drainage principally from the lower posterior neck, the posterior trunk, and the posterior shoulder; (d) the central group, which consists of three or four sets of lymph nodes that are embedded in the fat of the axilla lying immediately posterior to the pectoralis minor muscle and receive lymph drainage both from the axillary vein, external mammary, and scapular groups of lymph nodes, and directly from the breast; (e) the subclavicular group (apical), which consists of six to twelve sets of lymph nodes that lie posterior and superior to the upper border of the pectoralis minor muscle and receive lymph drainage from all of the other groups of axillary lymph nodes; and (f) the interpectoral group (Rotter’s nodes), which consists of one to four lymph nodes that are interposed between the pectoralis major and pectoralis minor muscles and receive lymph drainage directly from the breast. The lymph fluid that passes through the interpectoral group of lymph nodes passes directly into the central and subclavicular groups.

clip_image004

6. Clavipectoral Fascia:-


Pierced by LTC

L-Lateral pectoral nerve

T-Thoracoacromial vessels

C—Cephalic VEIN

Clavipectoral fascia:-The clavipectoral fascia is a strong fibrous sheet behind the clavicular part of pectoralis major. It fills the gap between pectoralis minor and subclavius, and covers the axillary vessels and nerves. It splits around subclavius and is attached to the clavicle both anterior and posterior to the groove for subclavius. The posterior layer fuses with the deep cervical fascia which connects omohyoid to the clavicle and with the sheath of the axillary vessels. Medially it blends with the fascia over the first two intercostal spaces and is attached to the first rib, medial to subclavius. Laterally, it is thick and dense, and is attached to the coracoid process, blending with the coracoclavicular ligament. Between the first rib and coracoid process the fascia often thickens to form a band, the costocoracoid ligament. Below this the fascia becomes thin, splits around pectoralis minor and descends to blend with the axillary fascia and laterally with the fascia over the short head of biceps. The cephalic vein, thoraco-acromial artery and vein, and lateral pectoral nerve pass through the fascia.

7. Serratus Anterior muscle :- SERRATUS (AT = 8 Digitations from upper eight ribs)

Nerve supply:- C5,C6 and C7(long thoracic nerve)

Also called as Boxer`s muscle.-Along with the pectoralis minor the muscle pulls the scapula forwards around the chest wall to protract the upper limb(in pushing and punching movements)

Forms the Medial Wall of Axilla

Damage to the long thoracic nerve;-Because the long thoracic nerve passes down the lateral thoracic wall on the external surface of the serratus anterior muscle, just deep to skin and subcutaneous fascia, it is vulnerable to damage. Loss of function of this muscle causes the medial border, and particularly the inferior angle, of the scapula to elevate away from the thoracic wall, resulting in characteristic ‘winging’ of the scapula, on pushing forward with the arm.

True bout the Serratus anterior muscle is
A. Originates from the lower four ribs (upper 8 ribs)
B. Bipennate muscle (8 pinna)
C. Supplied by the subscapular nerve  (long thoracic nerve C5 C6 C7 roots)
D/ Helps in forced inspiration –True

Winging of scapula is due to paralysis of :
(A) Rhomboides (B) Trapezius
(C) L. dorsi (D) Serratus-anterior

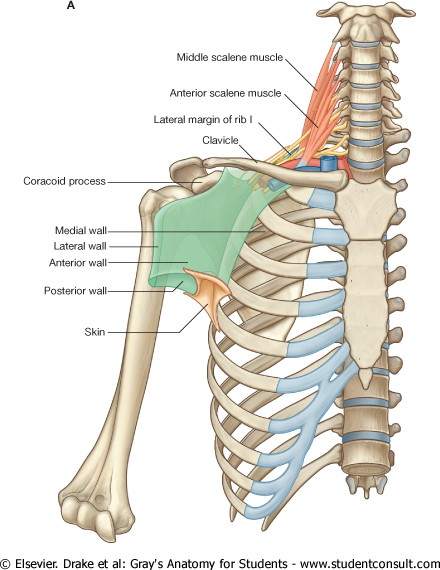

8. Axilla:- The axillary inlet is oriented in the horizontal plane and is somewhat triangular in shape, with its apex directed laterally.The margins of the inlet are completely formed by bone.

  • the medial margin is the lateral border of rib I;
  • the anterior margin is the posterior surface of the clavicle;
  • the posterior margin is the superior border of the scapula The apex of the triangularly shaped axillary inlet is lateral in position and is formed by the medial aspect of the coracoid process
  • imageimage

The anterior wall is formed by pectorales major and minor, the former covering the whole wall, the latter its intermediate part. The interval between the upper border of pectoralis minor and clavicle is occupied by the clavipectoral fascia. The posterior wall is formed by subscapularis above, and teres major and latissimus dorsi below. The medial ‘wall’ is convex laterally and is composed of the first four ribs and their associated intercostal muscles, together with the upper part of serratus anterior. The anterior and posterior walls converge laterally: the ‘wall’ is narrow and consists of the humeral intertuberous sulcus. The lateral angle lodges coracobrachialis and biceps.

So lateral wall is very narrow,its actually an angle.

Contents of Axilla:-

The axilla contains the axillary vessels, the infraclavicular part of the brachial plexus and its branches, lateral branches of some intercostal nerves, many lymph nodes and vessels, loose adipose areolar tissue and, in many instances, the ‘axillary tail’ of the breast. The axillary vessels and brachial plexus run from the apex to the base along the lateral wall, nearer to the anterior wall: the axillary vein is anteromedial to the artery. The obliquity of the upper ribs means that the neurovascular bundle, after it emerges from behind the clavicle, crosses the first intercostal space: its relations are therefore different at upper and lower levels. Thoracic branches of the axillary artery are in contact with the pectoral muscles; the lateral thoracic artery reaches the thoracic wall along the lateral margin of pectoralis minor. q:-Subscapular vessels descend on the posterior wall at the lower margin of subscapularis. The subscapular and thoracodorsal nerves cross the anterior surface of latissimus dorsi at different inclinations. Circumflex scapular vessels wind round the lateral border of the scapula; posterior circumflex humeral vessels and the axillary nerve curve back and laterally around the surgical neck of the humerus.

No large vessel lies on the medial ‘wall’, which is crossed proximally only by small branches of the superior thoracic artery. The long thoracic nerve descends on serratus anterior and the intercostobrachial nerve perforates the upper anterior part of this wall, crossing the axilla to its lateral ‘wall’

9.The Brachial Plexus:-Branches of the brachial plexus may be described as supraclavicular and infraclavicular

From roots 1. Nerves to scaleni and longus colli C5, 6, 7, 8
  2. Branch to phrenic nerve C5
  3. Dorsal scapular nerve C5
  4. Long thoracic nerve C5, 6 (7)
From trunks 1. Nerve to subclavius C5, 6
  2. Suprascapular nerve C5, 6

Dorsal Scapular nerve supplies rhomboids

Long thoracic nerve supplies the serratus anterior.

Point to note nerves from roots supplies the muscles inserted into the medial margin of Scapula.

The lateral pectoral nerve is larger than the medial, and may arise from the anterior divisions of the upper and middle trunks, or by a single root from the lateral cord. Its axons are from the fifth to seventh cervical rami. It crosses anterior to the axillary artery and vein, pierces the clavipectoral fascia and supplies the deep surface of pectoralis major. It sends a branch to the medial pectoral nerve, forming a loop in front of the first part of the axillary artery  to supply some fibres to pectoralis minor.

In a postfixed plexus the contribution by T1 is large,T2 is always present,C4 is absent and C5 is reduced in size.

In a prefixed plexus the contribution by C4 is large and that from T2 is absent,

Lower subscapular nerve supplies teres major

Upper and Lower subscapular Nerve supplies Subscapular muscles.

ROOT VALUES :-a) Musculocutaneous nerve:-C5,C6,C7 (Branches of lateral cord)

b)Ulnar Nerve :- C7C8T1 (Medial Cord)

c) Axillary nerve :- C5C6 (POST CORD)

D) Radial nerve (c5,c6,c7,c8,t1) Post Cord

10. Erbs Paralysis:- Upper Trunk C5,C6 injury   CAUSES Policemans tip or Porters Tip hand.Arm HANGS BY SIDE,IT IS ADDUCTED AND MEDIALLY ROTATED.Supination as well as flexion is lost ,so is abduction.

11.Klumpkes Paralysis/Neurogenic Thoracic Outlet Syndrome (arterial type is also discussed in addition due to anatomic relevance) :- Lower trunk (C8T1) injury causes Claw Hand due to unapposed action of long flexors and extensors of the fingers.In a claw hand there is hyperextension at the MCP joint and flexion at the IP joints.Horners syndrome is also seen in Klumpke`s paralysis.Klumpke`s paralysis is seen in Thoracic Outlet syndrome.Thoracic outlet is an anatomic region containing First Rib,Subclavian Artery and vein Brachial Plexus,The clavicle and Lung Apex.



At the superior thoracic aperture(Thoracic Outlet) , the superior aspects of the pleural cavities, which surround the lungs, lie on either side of the entrance to the mediastinum .Structures that pass between the upper limb and thorax pass over rib I and the superior part of the pleural cavity as they enter and leave the mediastinum. Structures that pass between the neck and head and the thorax pass more vertically through the superior thoracic aperture.

True neurogenic thoracic outlet syndrome (TOS) results from compression of the lower trunk of the brachial plexus or ventral rami of the C8 or T1 nerve roots by an anomalous band of tissue connecting an elongate transverse process at C7 with the first RIB.

Patients with neurogenic thoracic outlet compression may develop shoulder and arm pain, weakness, and paresthesias. Patients with arterial compression may experience claudication, Raynaud’s phenomenon, and even ischemic tissue loss and gangrene. Venous compression may cause thrombosis of the subclavian and axillary veins; this is often associated with effort and referred to as Paget-Schroetter syndrome.(New in 17th ed Harrison Page 1571)

Adson’s test is used to assess for the presence of Thoracic Outlet Syndrome at the scalene triangle. The patient is examined standing. The examiner palpates the radial pulse while moving the upper extremity in abduction, extension, and external rotation. The patient then is asked to rotate her head toward the involved side while taking a deep breath and holding it. A positive exam will result in a diminished or absent radial pulse.

Several maneuvers that support the diagnosis of thoracic outlet compression syndrome may be used to precipitate symptoms, cause a subclavian artery bruit, and diminish arm pulses. These include the abduction and external rotation test, in which the affected arm is abducted by 90° and the shoulder is externally rotated; the scalene maneuver (extension of the neck and rotation of the head to the side of the symptoms); the costoclavicular maneuver (posterior rotation of shoulders); and the hyperabduction maneuver (raising the arm 180°).Most patients can be managed conservatively. They should be advised to avoid the positions that cause symptoms. Many patients benefit from shoulder girdle exercises. Surgical procedures such as removal of the first rib or resection of the scalenus anticus muscle are necessary occasionally for relief of symptoms or treatment of ischemia.

12.  Trapezius (Accessory Nerve,XI):- Each trapezius muscle is flat and triangularly shaped, with the base of the triangle situated along the vertebral column (the muscle’s origin) and the apex pointing toward the tip of the shoulder (the muscle’s insertion)  The muscles on both sides together form a trapezoid.

The superior fibers of trapezius, from the skull and upper portion of the vertebral column descend to attach to the lateral third of the clavicle and to the acromion of the scapula. Contraction of these fibers elevates the scapula. In addition, the superior and inferior fibers work together to rotate the lateral aspect of the scapula upward to raise the upper limbs above the head.(Overhead abduction).

Motor innervation of trapezius is by the accessory nerve (XI), which descends from the neck onto the deep surface of the muscle . Proprioceptive fibers from trapezius pass in the branches of the cervical plexus and enter the spinal cord at spinal cord levels C3 and C4.

Acting with levator scapulae, the upper fibres elevate the scapula and with it the point of the shoulder; acting with serratus anterior, trapezius rotates the scapula forward so that the arm can be raised above the head; and acting with the rhomboids, it retracts the scapula, bracing back the shoulder. With the shoulder fixed, trapezius may bend the head and neck backwards and laterally. Trapezius, levator scapulae, rhomboids and serratus anterior combine in producing a variety of scapular rotations

Clinical anatomy: testing Trapezius is palpated while the shoulder is shrugged against resistance.

13.  Rhomboideus:-Retract the scapula Supplied by dorsal Scapular nerve.

14. Clavicle:- The shaft is gently curved and in shape resembles the italic letter f, being convex forwards in its medial two-thirds and concave forwards in its lateral third.

The clavicle begins to ossify before any other bone in the body, and is ossified from three centres. The shaft of the bone is ossified in condensed mesenchyme from two primary centres, medial and lateral, which appear between the fifth and sixth weeks of intrauterine life, and fuse about the forty-fifth day. Cartilage then develops at both ends of the clavicle. The medial cartilaginous mass contributes more to growth in length than does the lateral mass: the two centres of ossification meet between the middle and lateral thirds of the clavicle. A secondary centre for the sternal end appears in late teens, or even early twenties, usually 2 years earlier in females (Fig. 49.2). Fusion is probably rapid but reliable data are lacking. An acromial secondary centre sometimes develops at c.18 to 20 years, but this epiphysis is always small and rudimentary and rapidly joins the shaft.

The clavicle is often fractured, commonly by indirect forces, as a result of a violent impact to the hand or shoulder. The break is usually at the junction of the lateral and intermediate thirds, where the curvature changes, for this is the weakest part of the bone. A fracture medial to the conoid tubercle interrupts weight transmission from the arm to the axial skeleton. The resulting deformity is caused by the weight of the arm, which acts on the lateral fragment through the coracoclavicular ligament and draws it downwards. The medial fragment, as a rule, is a little displaced.

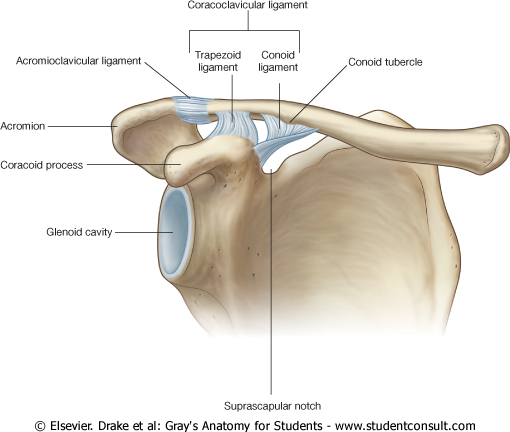

The coracoclavicular ligament connects the clavicle and the coracoid process of the scapula. Though separate from the acromioclavicular joint, it is a most efficient accessory ligament, and maintains the apposition of the clavicle to the acromion. Its trapezoid and conoid parts, usually separated by fat or, frequently, a bursa, connect the medial horizontal part of the coracoid process and lateral end of the subclavian groove of the clavicle; these adjacent areas may even be covered by cartilage to form a coracoclavicular joint.

The coracoclavicular ligament stabilizes the acromioclavicular joint. In acromioclavicular dislocation, the ligament is torn and the scapula falls away from the clavicle. Dislocation readily recurs because of the flatness and orientation of the joint surfaces.

15.


All of the following are branches of subclavian artery except :
(A)Vertebral artery
(B)Thyrocervical trunk
(C)Subscapular artery—-axillary artery branch
(D)Internal thoracic artery


16. Deltoid:-     ORIGIN                                                                              INSERTION                                                       NERVE                                                              ACTION

Trapezius Superior nuchal line, external occipital protuberance, medial margin of the ligamentum nuchae, spinous processes of CVII to TXII and the related supraspinous ligaments Superior edge of the crest of the spine of the scapula, acromion, posterior border of lateral one-third of clavicle Motor spinal part of accessory nerve (CN XI). Sensory (proprioception) anterior rami of C3 and C4 Powerful elevator of the scapula; rotates the scapula during abduction of humerus above horizontal; middle fibers retract scapula; lower fibers depress scapula
Deltoid Inferior edge of the crest of the spine of the scapula, lateral margin of the acromion, anterior border of lateral one-third of clavicle Deltoid tuberosity of humerus Axillary nerve [C5,C6] Major abductor of arm (abducts arm beyond initial 15° done by supraspinatus); clavicular fibers assist in flexing the arm; posterior fibers assist in extending the arm


The two most superficial muscles of the shoulder are the trapezius and deltoid muscles (Fig. 7.34 and Table 7.1). Together, they provide the characteristic contour of the shoulder:

  • trapezius attaches the scapula and clavicle to the trunk;
  • deltoid attaches the scapula and clavicle to the humerus

Trapezius is attached to all structures except :
(A)First rib
(B)Clavicle
(C)Scapula
(D)Occiput

Posted in Uncategorized | Tagged: , , , , , , , | 5 Comments »
